From Database to Browser: A REST API and a Real Flipbook

Post 5 of the Pepper & Carrot AI-powered flipbook series. Post 4 put one full episode into Postgres + ChromaDB + LocalStorage. It’s sitting there, fully described, queryable from psql, three image variants per page on disk — and zero of it is visible in a browser. This post fixes that. We design two REST endpoints, ship the route handlers, hand-write a TypeScript mirror of the Pydantic response models, and build a real page-flipping flipbook in React using StPageFlip. By the end, a reader can pick an episode and flip through it like a real book.

What you’ll build in this post.

• Two FastAPI route handlers in backend/app/api/episodes.py:
  • GET /api/episodes — list episodes with cover image, plot summary, and page count.
  • GET /api/episodes/{slug} — full episode detail, including every page with its display image and metadata.
• Pydantic v2 response models (EpisodeListItem, EpisodeListResponse, EpisodeDetail, PageDetail) that resolve pages.image_url relative keys into absolute URLs at response time via the Storage Protocol from Post 3.
• A frontend/ directory at the repo root: Vite + React + TypeScript scaffold, a small typed fetch wrapper, a hand-rolled types.ts that mirrors the Pydantic models, a minimal episode-picker, and a real flipbook reader.
• A <Flipbook> component wrapping StPageFlip — single page in portrait, two-page spread in landscape, switching live as the viewport changes.
• Three smoke tests that prove GET /api/episodes/{slug} returns absolute image URLs and 404s on unknown slugs.

Prerequisites.

• The workshop starter at the state Post 4 left it in: Postgres up (docker compose ps shows healthy), alembic upgrade head applied, seed.py run, and Episode 1 ingested by the ingest-from-images skill. Verify with docker exec peppercarrot-postgres psql -U peppercarrot -d peppercarrot -c "SELECT COUNT(*) FROM pages;" — three rows means you’re ready.
• Node.js 20+ installed (we set this up in Post 2 step 1). Confirm with node --version.
• No new external services. Everything in this post runs against the same local stack you already have.

About the repo URL. The backend additions (backend/app/api/episodes.py, the response models, the smoke tests) plus the entire frontend/ directory live in the same workshop starter that backed Posts 2–4. Pull the latest to pick up Post 5’s additions. The full project repository — chat orchestrator, world-graph overlay, cloud deploy — still goes up alongside the deploy guide in Post 10.

---

Table of Contents

1. The Code in Front of You: Tour + Quick Start
2. Two Halves, One Wire Format
3. What a REST API Actually Is
4. Designing the API Surface Backwards From the UI
5. Pydantic v2 in Two Minutes
6. Where the Relative Key Becomes an Absolute URL
7. The Two Route Handlers, End to End
8. The Frontend’s Type Contract: Hand-Rolled, For Now
9. The Frontend Stack in Three Lines
10. The Flipbook Component: Wrapping StPageFlip Cleanly
11. Single Page vs Two-Page Spread
12. The Episode Picker and the View Switch
13. The Request, End to End
14. Running It on Your Laptop
15. Key Takeaways
16. Appendix: Going Deeper
    • The list_episodes Query, Built Up Step by Step
    • The get_episode Query — selectinload and scalar_one_or_none()
    • How Settings Reads Your .env

---

The Code in Front of You: Tour + Quick Start

Before any concepts, let’s get the running app in front of you and orient around the files this post adds. Skim this section even if you plan to read the rest carefully — the rest is easier to follow if you’ve seen the app render once.

What’s new in the workshop starter

Two directories are new compared to where Post 4 left things. Everything else carries forward unchanged.

pepper-carrot-companion-workshop/
├── backend/
│   └── app/
│       ├── main.py            ← updated: lifespan + /api/episodes mounted
│       └── api/               ← NEW (Post 5)
│           ├── __init__.py
│           └── episodes.py    ← two route handlers + Pydantic response models
│   └── tests/
│       └── test_episodes_api.py  ← NEW: 3 hermetic smoke tests
│
└── frontend/                  ← NEW (Post 5) — the entire React app
    ├── package.json           ←   react, react-dom, page-flip, vite, typescript
    ├── vite.config.ts         ←   dev proxy for /api and /images
    ├── tsconfig.json
    ├── index.html
    └── src/
        ├── main.tsx           ←   4-line bootstrap
        ├── App.tsx            ←   picker ↔ reader view-switch
        ├── api/
        │   ├── client.ts      ←   listEpisodes + getEpisode (plain fetch)
        │   └── types.ts       ←   TS mirror of the Pydantic models
        ├── components/
        │   ├── EpisodePicker.tsx
        │   └── Flipbook.tsx   ←   StPageFlip wrapped via a ref
        └── styles/global.css

That’s the whole surface. Two route handlers on the backend, six small files on the frontend, one wire format between them. The rest of this post unpacks each of those pieces — why it’s shaped the way it is, and what the alternatives were.

Three terminals, three commands

You need three things running at once: Postgres (already up from Post 2), the FastAPI backend, and the Vite dev server. Each owns one terminal.

# Terminal 1 — Postgres (carried over from Post 2; skip if it's already up)
cd path/to/pepper-carrot-companion-workshop
docker compose up -d
docker compose ps                          # postgres should show (healthy)

# Terminal 2 — FastAPI backend on :8000
cd backend
uv sync                                    # picks up any new deps
uv run uvicorn app.main:app --reload
#   INFO:     Uvicorn running on http://127.0.0.1:8000

# Terminal 3 — Vite dev server on :5173
cd frontend
npm install                                # ~30 s the first time
npm run dev
#   ➜  Local:   http://localhost:5173/

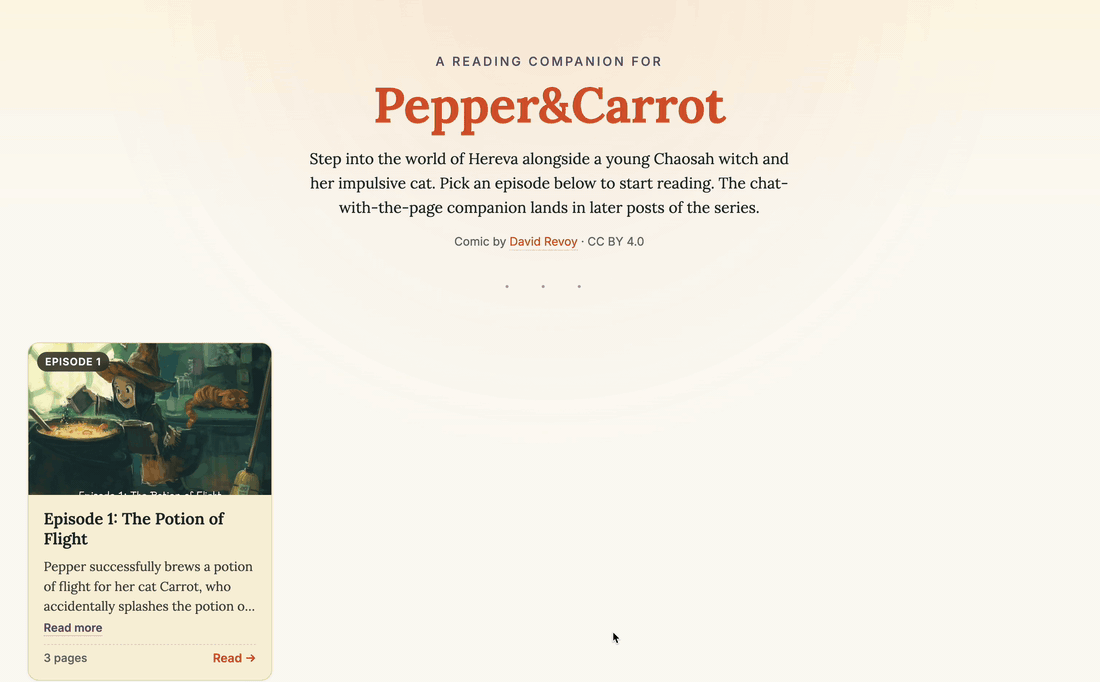

Open http://localhost:5173/ in a browser. If Episode 1 was ingested in Post 4, you should see one episode card; click it and a real page-flipping flipbook renders. Drag a page corner to flip; resize the window to portrait and the spread collapses to a single page.

Optional sanity check from a fourth terminal — the backend handlers in isolation:

curl -s http://localhost:8000/api/episodes | jq '.episodes[0]'
# { "id": "...", "slug": "ep01-potion-of-flight",
#   "title": "Potion of Flight", "episode_number": 1,
#   "cover_image_url": "http://localhost:8000/images/...",
#   "page_count": 3, "plot_summary": "..." }

curl -s http://localhost:8000/api/episodes/ep01-potion-of-flight | jq '.pages | length'
# 3

Or open http://localhost:8000/docs and click “Try it out” on either endpoint — FastAPI’s Swagger UI renders the same JSON in a clickable form, generated automatically from the Pydantic models.

What fires when the page loads

Open http://localhost:5173/, open the browser DevTools → Network tab, hit refresh. Two kinds of requests fire on first load, in order:

1. One JSON call to FastAPI — GET /api/episodes. Triggered by a useEffect in EpisodePicker.tsx that calls api.listEpisodes() when the component mounts. In dev this goes to Vite at :5173, which proxies it to http://localhost:8000/api/episodes; in prod it goes cross-origin and CORS lets it through. Status 200, response body is the { "episodes": [...] } payload from list_episodes() in backend/app/api/episodes.py.
2. One image call per cover — GET /images/episodes/.../cover.webp, repeated once per episode that came back with a non-null cover_image_url. These are fired automatically by the browser, not by your JavaScript — it sees <img src="..."> in the DOM and goes to fetch the bytes. They land on FastAPI’s /images/* StaticFiles mount; no Python handler runs, the bytes stream straight off disk.

Filter the Network tab by Fetch/XHR for the first kind, Img for the second. The “Initiator” column shows you why each request fired — episode-picker.tsx:14 (a useEffect) for the JSON call, img (the browser, on behalf of the DOM) for the image calls.

Two gotchas worth knowing on day one:

• React StrictMode double-fires effects in dev. main.tsx wraps <App /> in <React.StrictMode>, which intentionally re-invokes every effect once to surface buggy side effects. You’ll see two GET /api/episodes rows in DevTools, both 200. The second response is discarded by React; this is dev-only and goes away in npm run build. (React docs on StrictMode.)
• No GET /api/episodes/{slug} yet. The detail endpoint only fires after you click an episode card — a separate useEffect inside Flipbook.tsx watching episode.slug. This is deliberate: the detail response is 5–20× larger than the list, and there’s no reason to fetch every episode’s pages before the reader picks one. Network volume tracks user intent, not arrival on the page.

(If cover_image_url came back null — which it currently does in the workshop starter, because the peppercarrot.com metadata.yaml we ingest doesn’t carry a cover URL — there are no /images/.../cover.webp rows, and the card renders the parchment-gradient .episode-cover-placeholder instead. That’s correctness, not a bug: missing data → fallback UI.)

Closing the orientation

If all four of those produce output, every concept in this post is now live in front of you. From here on, when the text references a file like backend/app/api/episodes.py or frontend/src/components/Flipbook.tsx, you have it open in your editor and running in your browser.

---

Two Halves, One Wire Format

This post has two halves — a Python half and a TypeScript half — and they connect through exactly one thing: a REST API speaking JSON.

The temptation, especially for a portfolio project, is to start with the half you find more fun and figure out the contract along the way. Don’t. When the contract is an afterthought, the two halves end up subtly misaligned — the backend returns episode_number, the frontend expects number, and you discover the gap when something silently renders blank in production.

The fix is to make the contract a real artifact, written down, with both sides agreeing on it. FastAPI’s automatically-generated OpenAPI spec — published at /openapi.json and rendered interactively at /docs — is that artifact. The backend’s Pydantic response models are the source of truth; the spec is generated from them; the frontend’s TypeScript interfaces mirror the same shapes. We’ll see in § The Frontend’s Type Contract why this post keeps the mirror in sync by hand at two endpoints and where the line is for graduating to a generator.

Everything else in this post is a consequence of that ordering: design the wire format first, then implement each side against it. Before we get there, the next section unpacks what “REST API” actually means in concrete terms — feel free to skip it if you’ve built web services before.

---

What a REST API Actually Is

If you’ve never built one, “REST API” can feel like a phrase people use without explaining. The good news: there is very little hidden depth. It’s a convention for letting two programs talk to each other over HTTP, where URLs name things and HTTP methods name what you want to do with them. Most of the rest is mechanics. This section lays out the mechanics in concrete terms, using the two endpoints we’re about to build as the running example.

The three pieces of every REST call

Every HTTP request — and every REST call is just an HTTP request — has three things on the way out, and a fourth on the way back:

1. A method. One of GET, POST, PUT, PATCH, DELETE (and a few rarer ones). The method is your verb — it says what kind of operation you intend.
2. A URL. A path like /api/episodes/ep01-potion-of-flight. The URL is your noun — it identifies the thing you’re operating on.
3. An optional body. JSON, usually. Present for POST / PUT / PATCH (you’re sending something); absent for GET / DELETE (the URL alone identifies what you want).

Then the server sends back:

1. A status code + a body. A three-digit number (200, 404, 422, …) saying how it went, plus an optional JSON payload.

That’s all. Every “API call” anywhere in this post — and the ten thousand calls a real web app makes per session — fits this shape.

HTTP methods, in plain English

Five methods cover essentially all of REST. The convention is so consistent across the industry that the meaning of each is roughly the same in every framework, language, and tutorial you’ll ever see.

Method	Means	This post uses it?
GET	Read. Fetch a resource. Doesn’t change anything on the server.	✅ both endpoints
POST	Create. Make a new resource.	Not yet — Post 6 uses it for chat sessions
PUT	Replace. Overwrite a resource with a new version.	Not in this project
PATCH	Update. Modify part of a resource.	Not yet — Post 6 uses it for “user moved to page N”
DELETE	Remove. Delete a resource.	Not in this project (read-only demo)

Two things to internalize:

GET requests must be safe. Calling GET /api/episodes ten times in a row should produce the same answer ten times and change nothing on the server. This is more than etiquette — browsers, CDNs, and tools like curl all assume GET is safe and will happily retry or cache it. If your GET handler secretly increments a counter or sends an email, you’ll get phantom emails the first time a search engine indexes your site.

Method + URL is the API. When somebody says “the episodes endpoint,” they usually mean “GET /api/episodes” — a specific (method, URL) pair, not just a URL. The same URL can have a GET (read) and a DELETE (delete) handler that do completely different things. FastAPI’s @router.get("") vs @router.delete("/{id}") decorators is how you declare which is which.

URLs as nouns: collections and items

The convention is collection / item:

• /api/episodes is the collection of episodes — plural, an index. GET on it returns a list.
• /api/episodes/{slug} is one specific episode — singular, an item. GET on it returns just that one.

You can stack the pattern: /api/episodes/{slug}/pages would be “the collection of pages within one episode,” /api/episodes/{slug}/pages/{page_number} would be one specific page. We could have built it that way — but Post 5 returns all pages of an episode inside the episode detail response (the flipbook needs them all at once anyway), so the nested URLs aren’t worth the extra route handlers. Pick the URL shape that matches how the client actually loads data, not the shape that maximizes RESTful purity.

A few other URL conventions worth knowing on first contact:

• Query parameters (?page=4&mode=focus) are for filtering, paging, and option flags — modifiers on a GET, not the identity of the thing you’re fetching.
• Path parameters (/episodes/{slug}) are the identity. {slug} here is just FastAPI’s syntax for “this segment is a variable; capture it and pass it to the handler.”
• The /api/ prefix isn’t required by REST — it’s just a convention that keeps API URLs separate from the URLs the frontend itself serves (e.g., /read/ep01-...). Helps with CORS configuration and CDN routing later.

Status codes: 200, 404, 422, 500

The response code is the first thing the client reads. The five-hundreds and four-hundreds are how the server tells the client what happened without making the client parse the body. Six codes cover 95% of cases:

Code	Meaning	When this post returns it
200 OK	Success, here’s the response body.	Both endpoints on the happy path.
404 Not Found	The thing you asked for doesn’t exist.	GET /api/episodes/does-not-exist.
422 Unprocessable Entity	Your request was syntactically valid but semantically wrong (missing field, wrong type).	FastAPI auto-returns this when Pydantic validation fails on a request body.
500 Internal Server Error	The server crashed. Bug to fix.	When your code raises an unhandled exception.
401 Unauthorized	You’re not authenticated — the server doesn’t know who you are. Send credentials and try again.	Not in this project — no auth.
403 Forbidden	The server knows who you are, but you’re not allowed to do this.	Not in this project — no auth.

Worth flagging: 401 Unauthorized is misleadingly named. Despite the word “unauthorized,” the code semantically means un-authenticated — i.e., “I don’t know who you are, please identify yourself.” The “you’re identified but not allowed” case is 403 Forbidden. The misnaming is baked into RFC 9110 and isn’t going to change, but every full-stack developer trips over it eventually, so it’s worth knowing the actual semantics. Authentication = who are you?; authorization = what can you do?; 401 is the first, 403 is the second.

The mental model: status code first, body second. A client that ignores the status code and tries to parse {"detail": "Episode '...' not found"} as if it were an EpisodeDetail will explode on the missing fields. The two-line if (!res.ok) throw ... guard in frontend/src/api/client.ts is exactly this discipline written in TypeScript.

Why JSON

JSON is the wire format because both sides parse it natively. Python’s json module reads it into dicts; JavaScript reads it directly with JSON.parse (a browser built-in). Pydantic adds typed parsing on top, refusing dicts that don’t match its schema. The alternatives — XML, Protocol Buffers, MessagePack — are sometimes the right call (protobuf for high-throughput RPC, MessagePack when bandwidth dominates), but at the scale of a portfolio web app, the cost of JSON’s redundant text is invisible and the readability win is real. You can curl any of this post’s endpoints, pipe to jq, and see exactly what the frontend is seeing. That property is worth a lot when you’re debugging.

Cross-origin requests: the same-origin policy and CORS

There’s one piece of web mechanics that catches every full-stack developer at least once, and it’s worth understanding before we get to the frontend half: browsers don’t let one origin freely call another origin’s API. This post’s frontend at http://localhost:5173 and backend at http://localhost:8000 are two different origins, and that single fact shapes a non-trivial amount of the wire setup.

Plain-English aside: what’s an “origin”? An origin is the tuple (scheme, host, port) of a URL — for example (http, localhost, 5173). Two URLs share an origin only if all three match exactly. So http://localhost:5173 and http://localhost:8000 are different origins (different port), and http://example.com and https://example.com are different origins (different scheme).

The same-origin policy

The browser enforces a security rule called the same-origin policy: by default, JavaScript running on a page from one origin cannot read responses from a different origin. Without this rule, any random tab in your browser could fire off fetch('https://yourbank.example/api/transfer', ...) and silently move your money — your bank’s cookies would be sent along automatically. The same-origin policy is one of the load-bearing security boundaries of the web.

The catch: legitimate cross-origin calls are everywhere. A static frontend on https://app.example.com calling an API at https://api.example.com. A page embedding fonts from Google’s CDN. A SPA at http://localhost:5173 calling its dev backend at http://localhost:8000. The web would be useless if every cross-origin call were forbidden, so there has to be an opt-in.

CORS is the opt-in

CORS (Cross-Origin Resource Sharing, MDN reference) is that opt-in. It’s a small protocol where the server being called explicitly tells the browser “yes, requests from this list of other origins are allowed.” The browser checks the server’s response headers (Access-Control-Allow-Origin, etc.) before delivering the response to the JavaScript that made the call; if the server didn’t include the right headers for this origin, the browser blocks the response and the fetch() promise rejects.

Two non-obvious properties of CORS:

• CORS is browser-enforced, not server-enforced. The server receives and processes the request just fine — it’s the browser that refuses to hand the response to JavaScript. That’s why curl http://localhost:8000/api/episodes from your terminal works even if CORS isn’t configured: curl doesn’t enforce CORS. Browsers do.
• For some requests, the browser asks first. Simple GET / HEAD / POST requests (with allowlisted content types) go straight through. Anything fancier — PATCH, DELETE, custom headers like Authorization, JSON request bodies — triggers a preflight: an OPTIONS request the browser sends before the real one to ask “can I make this request?” The server answers with what’s allowed; if it matches, the real request goes. You can see this in Chrome DevTools → Network tab: the OPTIONS row shows up just before any PATCH / POST that needs it. Browsers cache the preflight for a few minutes so it’s not per-request.

What we configure in this project

FastAPI ships a CORS middleware. Look at backend/app/main.py:

from fastapi.middleware.cors import CORSMiddleware

app.add_middleware(
    CORSMiddleware,
    allow_origins=settings.cors_origins,   # ["http://localhost:5173"] by default
    allow_credentials=True,
    allow_methods=["*"],
    allow_headers=["*"],
)

What is settings.cors_origins? Step by step:

1. It’s a Python list of origin strings — the allowlist of websites the browser is permitted to make API calls from.
2. Its value comes from your .env file. Put a line like CORS_ORIGINS=["http://localhost:5173"] there, and pydantic-settings (set up in Post 2) loads it into Settings.cors_origins on startup.
3. If .env doesn’t set it, the default declared in backend/app/config.py kicks in — and that default is ["http://localhost:5173"], the URL where Vite serves the frontend in dev.

When a request comes in, CORSMiddleware looks at the request’s Origin header (the browser sets this automatically to whichever site the page came from) and checks whether that origin is in the list. If yes, FastAPI adds an Access-Control-Allow-Origin: <that origin> header to the response — the green light the browser is waiting for. If no, the header is absent, and the browser blocks the JavaScript from reading the response.

So in one sentence: the list above is the set of websites your API will talk to; everything else is silently muted by the browser. In production you swap http://localhost:5173 for your real frontend’s URL (e.g. https://flipbook.example.com) by editing .env — no code changes, no redeploy of any Python.

If you’re wondering how CORS_ORIGINS=... in .env actually ends up as a Python list on Settings — the pydantic-settings machinery that does the loading is walked through in § Appendix: How Settings Reads Your .env at the end of the post.

But there’s also a second mechanism in play, which the Frontend Stack section covers in code: Vite’s dev-server proxy. With proxy: { '/api': 'http://localhost:8000' } in vite.config.ts, the browser’s fetch('/api/episodes') actually hits Vite at :5173 first — same origin, no CORS check — and Vite then makes a server-to-server request to the FastAPI backend and returns the result. The browser sees a same-origin response and never even consults the CORS headers.

So why both?

• In dev, the proxy keeps the network tab clean (no preflight OPTIONS rows cluttering it) and dodges the rare case where misconfigured CORS would block a fetch you’re trying to debug.
• In production, the dev proxy isn’t there — the frontend is served as static files from a CDN (Cloudflare Pages in the eventual cloud deploy). The backend at a different origin is the only way the API gets called, and the CORS middleware is what makes that work.

Belt-and-suspenders. If you see a "blocked by CORS policy" error in your browser’s console down the road, you now know what file to look in (backend/app/main.py, cors_origins) and what to check (does the origin in the error message match what’s allowed?).

REST is a convention, not a standard

One important thing for anyone digging into the history: REST was described in a PhD dissertation by Roy Fielding in 2000, and what people call “REST” today is much looser than what the dissertation defined. Strict REST requires things like HATEOAS (responses contain links to related actions) that almost no production API actually implements. The pragmatic shape most of the industry has settled on — sometimes called RESTish or REST-style — is what you’ve just read: HTTP methods + collection/item URLs + JSON + status codes. That’s what this post’s API is, and what 95% of “REST APIs” you’ll encounter are. Don’t let a purist tell you otherwise.

The contract idea

The reason REST matters for this post is that the two halves of the app — Python backend, TypeScript frontend — can be developed and reasoned about independently because both sides agree on the same (method, URL, request shape, response shape) tuples. Neither side imports the other’s code; neither side knows what framework the other uses. The contract is the only shared surface. That’s why we spend the rest of the post making the contract a real, written-down, machine-readable artifact (the OpenAPI spec) instead of an oral tradition.

Seeing the contract: three URLs every FastAPI app exposes for free

The convenient part: FastAPI generates that contract automatically and serves three views of it on every running app, with no config at all. Boot the backend (uv run uvicorn app.main:app --reload) and open these in a browser:

URL	What you see
http://localhost:8000/docs	Swagger UI — interactive. Click any endpoint, expand “Try it out”, hit “Execute”, see the live response inline.
http://localhost:8000/redoc	ReDoc — same content, different layout. Three-column reference-style. Read-only, no “try it” button.
http://localhost:8000/openapi.json	The raw OpenAPI spec as JSON. This is the machine-readable file that openapi-typescript, Postman, Stoplight, and the rest of the OpenAPI tool ecosystem consume.

You can curl the JSON one to see what’s actually in it:

# All registered routes
curl -s http://localhost:8000/openapi.json | jq '.paths | keys'
# [
#   "/api/episodes",
#   "/api/episodes/{slug}",
#   "/health"
# ]

# All response/request models
curl -s http://localhost:8000/openapi.json | jq '.components.schemas | keys'
# ["CharacterSummary", "EpisodeDetail", "EpisodeListItem",
#  "EpisodeListResponse", "HTTPValidationError",
#  "PageCharacterRef", "PageDetail", "ValidationError"]

Every Pydantic model in backend/app/api/episodes.py shows up under components.schemas; every @router.get(...) shows up under paths. FastAPI rebuilds the file from your route handlers on each request — there is no separate generation step, no source-of-truth drift between the code and the spec. The spec can’t get out of sync with the routes, because it is the routes, serialized. That property is what lets us treat it as the contract instead of as documentation that someone has to remember to update.

A few small details worth knowing:

• You don’t have to enable any of this. It’s on by default. To turn it off (e.g., for a hardened production deployment), pass docs_url=None, redoc_url=None, openapi_url=None to the FastAPI(...) constructor. Most projects leave docs/redoc on in dev and auth-gate or disable them in prod.
• Which view to use when: /docs for daily dev — it’s the one you’ll have open in a side tab. /redoc for sharing with reviewers or printing a PDF. /openapi.json for feeding into tools.
• The Pydantic field constraints become spec constraints. episode_number: int = Field(ge=1) in Python turns into "minimum": 1 in the JSON spec, which Swagger UI renders as a hint and which generated TypeScript types could (in principle) enforce. The contract isn’t just names and types — it carries semantic constraints too.

The FastAPI features overview has the canonical write-up. Open /docs once before reading the next section — it’ll make the “design the API surface” conversation easier when you can see the interactive form for the endpoints we’re about to build.

---

Designing the API Surface Backwards From the UI

Before writing route handlers, it’s worth asking what shapes does the UI actually need? Designing the API surface forward from the database — “well, we have an episodes table, so I guess GET /api/episodes returns episode rows” — almost always produces too many round-trips. Designing it backwards from screens produces fewer, fatter responses that match how the UI loads.

There are exactly two screens in the read-only flipbook MVP:

1. Episode picker. A grid of episode cards: cover image, title, episode number, the plot summary written at ingestion time, and a page count. One request when the user lands on the page.
2. Reader. The flipbook, which needs every page of one episode — page number, display image URL, the per-page metadata (width, height, blurhash, dominant color) used for loading placeholders, and the per-page character list — all at once, because StPageFlip wants the full page list upfront. One request when the user clicks an episode.

That’s it. No chat session yet (Post 6), no chat panel yet (Post 7), no world graph yet (Post 9). Two screens → two endpoints. Every additional endpoint added in this post would be one I’d have to maintain and document without anything calling it.

The two endpoints fall out of the two screens:

Endpoint	Returns	Used by
GET /api/episodes	EpisodeListResponse — { episodes: EpisodeListItem[] }, each with id, slug, title, episode number, cover URL, page count, plot summary	Episode picker
GET /api/episodes/{slug}	One EpisodeDetail — same fields plus credits URL, an episode-level character roster, and every page in reading order	Reader / flipbook

The slug is what the frontend uses as the lookup key — it’s the natural noun for the URL once we add deep linking later. Using the UUID id instead would mean the frontend has to do two requests just to render a bookmarkable URL.

Here are the Pydantic v2 response models. They live alongside the routes in backend/app/api/episodes.py — the project keeps response shapes adjacent to the handlers that produce them, since they’re always edited together. Excerpt:

# backend/app/api/episodes.py
from uuid import UUID
from typing import Any
from pydantic import BaseModel


class EpisodeListItem(BaseModel):
    id: UUID
    slug: str
    title: str
    episode_number: int
    cover_image_url: str | None        # ← absolute URL or None, already resolved
    page_count: int
    plot_summary: str | None


class EpisodeListResponse(BaseModel):
    episodes: list[EpisodeListItem]


class CharacterSummary(BaseModel):
    id: UUID
    name: str
    image_url: str | None              # ← absolute URL, resolved


class PageCharacterRef(BaseModel):
    id: UUID
    name: str


class PageDetail(BaseModel):
    id: UUID
    page_number: int
    image_url: str                     # ← absolute URL, ready to drop into <img src>
    thumbnail_url: str | None
    image_metadata: dict[str, Any]     # {width, height, blurhash, dominant_color}
    characters: list[PageCharacterRef]


class EpisodeDetail(BaseModel):
    id: UUID
    slug: str
    title: str
    episode_number: int
    plot_summary: str | None
    credits_url: str | None
    characters: list[CharacterSummary]
    pages: list[PageDetail]

A few small design choices worth naming, because each one was deliberate:

• The list response is wrapped in { episodes: [...] }. Plain top-level arrays are valid JSON, but wrapping in an object leaves room for siblings (a next_cursor, a total_count) without breaking existing clients. At two episodes it doesn’t matter; at forty it will. Cheap insurance.
• image_metadata stays a dict[str, Any]. The DB column is JSONB holding {width, height, blurhash, dominant_color} and the frontend reads them all together. Flattening to typed sub-fields would require a Pydantic sub-model and a per-field assignment loop in the handler. The JSONB blob travels intact through Pydantic with one line; if the contents drift (a future palette field, say), no migration needed.
• PageDetail.characters uses PageCharacterRef, not the full character record. The episode-level characters: list[CharacterSummary] carries the full info (id, name, image URL). Each PageDetail.characters entry is just an id-and-name reference back to that list. This shaves bytes off the wire when a character appears on multiple pages — Pepper is in nearly every page of nearly every episode — and the frontend joins on id if it needs an image.
• EpisodeDetail is not EpisodeListItem extended. They overlap a lot, but the picker doesn’t need credits_url or character lists, and the reader needs more than the picker has. Two flat models is clearer to read than an inheritance chain when each is consumed in exactly one place.
• No request models in this post. Both endpoints are pure GETs with no body. The request side of the API surface gets interesting in Post 6 (chat session creation, page-update PATCH).

The corresponding OpenAPI spec — accessible at http://localhost:8000/openapi.json once the backend boots — is what makes these models the contract instead of just the implementation. The Swagger UI at /docs renders the same schemas in a clickable form. That spec is what the frontend’s types mirror by hand, and what a generator like openapi-typescript would consume if we add one later (see § The Frontend’s Type Contract).

---

Pydantic v2 in Two Minutes

Plain-English aside: what’s Pydantic? Pydantic is a Python library that turns “a class with type hints” into “a runtime validator that parses, coerces, and rejects malformed data.” You declare a class with typed fields; Pydantic gives you back a class that knows how to construct itself from a JSON string, a dict, or another ORM object — and that raises a structured error if any field is missing or the wrong type. Version 2 (the one we’re on) is roughly 10× faster than v1 because the core validator is implemented in Rust.

In FastAPI specifically, Pydantic plays three roles at once:

1. Request validation. If you type a route handler’s parameter as payload: SomeModel, FastAPI parses the JSON request body through SomeModel.model_validate(...) before your code runs. Malformed inputs become structured 422 Unprocessable Entity responses, with field-level error messages.
2. Response serialization. If you declare the route’s response_model=SomeOtherModel, FastAPI uses that model to re-validate and serialize whatever you return. This is a quiet superpower: even if your handler accidentally returns an ORM object with extra fields, only the fields declared on the response model end up in the JSON.
3. OpenAPI generation. Both of the above get reflected automatically into the OpenAPI spec FastAPI publishes at /openapi.json. The spec is what generates the interactive Swagger UI at /docs — and it’s the canonical wire-format document any future generated client (or hand-rolled TypeScript file) needs to stay in sync with.

If you’ve worked with Java’s Jackson or Go’s encoding/json struct tags, Pydantic occupies roughly the same niche — but it doubles as a request-validation layer and as a spec generator, which the others don’t. For a project where the JSON wire format is the seam between two languages, having all three of those in one library is the cheapest possible glue.

---

Where the Relative Key Becomes an Absolute URL

This is the most important section of the post, and the one that makes the Post 3 abstraction pay off in a way you can see.

Recall the project’s CLAUDE.md rule 5:

pages.image_url stores a relative key like episodes/ep01-pollution/pages/001-display.webp, not a full URL. The full URL is composed at API response time using the configured storage backend (LocalStorage.url_for() or R2Storage.url_for()). This way, swapping storage backends (local → R2) is a config change, not a migration.

The motivation is simple: a database migration that rewrites every image_url from http://localhost:8000/images/... to https://images.peppercarrot.example.com/... is a real cost — slow on big tables, scary on a running app, and guaranteed to happen the first time you move from dev to prod if URLs are stored absolute. Keeping the DB value relative and composing the absolute URL at response time costs nothing, and the swap-to-R2 day becomes a one-line change in .env.

Here’s how it lands in code. The route handler takes two FastAPI dependencies — an async DB session and a Storage — and the per-row resolution happens inline. No Service class wrapping it; for an API surface this small the indirection would cost more than it pays.

# backend/app/api/episodes.py (excerpt)
from typing import Annotated
from fastapi import APIRouter, Depends
from sqlalchemy import func, select
from sqlalchemy.ext.asyncio import AsyncSession

from app.clients import Storage, get_storage
from app.config import Settings, get_settings
from app.db.models import Episode, Page
from app.db.session import get_session

router = APIRouter()


def get_storage_client(settings: Annotated[Settings, Depends(get_settings)]) -> Storage:
    """Build the configured storage client.

    Wrapped as a FastAPI dependency so route handlers never import storage
    backends directly and tests can override it via app.dependency_overrides.
    """
    return get_storage(settings)


SessionDep = Annotated[AsyncSession, Depends(get_session)]
StorageDep = Annotated[Storage, Depends(get_storage_client)]


@router.get("", response_model=EpisodeListResponse)
async def list_episodes(db: SessionDep, storage: StorageDep) -> EpisodeListResponse:
    page_counts = (
        select(Page.episode_id, func.count(Page.id).label("page_count"))
        .group_by(Page.episode_id)
        .subquery()
    )
    stmt = (
        select(Episode, func.coalesce(page_counts.c.page_count, 0).label("page_count"))
        .outerjoin(page_counts, Episode.id == page_counts.c.episode_id)
        .order_by(Episode.episode_number.asc())
    )
    rows = (await db.execute(stmt)).all()

    items: list[EpisodeListItem] = []
    for episode, page_count in rows:
        cover_url = (
            await storage.url_for(episode.cover_image_url)
            if episode.cover_image_url
            else None
        )
        items.append(
            EpisodeListItem(
                id=episode.id,
                slug=episode.slug,
                title=episode.title,
                episode_number=episode.episode_number,
                cover_image_url=cover_url,
                page_count=int(page_count),
                plot_summary=_summary_for_card(episode.plot_summary),
            )
        )
    return EpisodeListResponse(episodes=items)

A few things to notice — and a couple are foundational enough that they deserve a plain-English aside before we keep going.

The @router.get("", response_model=EpisodeListResponse) decorator. Three concepts wrapped in one line. Let’s unpack each.

Plain-English aside: what’s a decorator? A decorator in Python is a function that wraps another function to add behavior, written with the @ syntax just above the wrapped function. @router.get(...) is shorthand for “after this def, take the function I just defined and pass it to router.get(...)” — FastAPI then stores it in an internal table that maps (method, URL) pairs to handlers. The decorator doesn’t call your function; it just registers it so the framework can call it later, at request time, when an HTTP request arrives with a matching path. (Python decorators in general: docs.)

Plain-English aside: what’s a router? The router variable comes from APIRouter() at the top of the file — it’s a container for related routes. Think of it as a sub-application: it has its own .get / .post / .patch / .delete methods, the routes you register on it sit dormant until the top-level FastAPI app mounts the router with a path prefix. In our case, app/main.py does app.include_router(episodes.router, prefix="/api/episodes", tags=["episodes"]), which means the @router.get("") here actually serves GET /api/episodes once mounted, and @router.get("/{slug}") serves GET /api/episodes/{slug}. The path on the decorator is relative to the router’s prefix. (FastAPI APIRouter docs.)

And the tags=["episodes"] argument? Pure OpenAPI-spec metadata — no runtime effect at all. FastAPI attaches the tag to every operation registered through this router, so each entry under /openapi.json → paths.<route>.get.tags ends up as ["episodes"]. Swagger UI at /docs then groups all operations sharing a tag into one collapsible section with the tag name as its header, and ReDoc uses tags for left-sidebar navigation. With one router and two routes the value is small, but in the full project (five routers — episodes, sessions, messages, pages, world-graph), it’s what keeps /docs readable instead of a flat list of 20+ endpoints. Some generated-client tools (openapi-typescript, openapi-fetch, Postman) also emit one namespace per tag, so the value carries through to the frontend if you wire that up.

And response_model=EpisodeListResponse? This argument tells FastAPI what shape the response will have. At runtime, FastAPI will take whatever the handler returns and re-validate it through EpisodeListResponse before serializing it to JSON — so even if the handler accidentally returns extra fields, only the ones declared on the response model end up on the wire. At spec-generation time, FastAPI uses the same model to populate the response schema in OpenAPI, which is what /docs renders and what generated frontend types would mirror. One declaration, three jobs: routing, response validation, spec generation.

async def instead of plain def.

Plain-English aside: what’s async? An async def function is a coroutine — a function that can pause its execution at await points, hand control back to the event loop, and resume later when whatever it was waiting on finishes. The practical effect: while this request is waiting on the database to respond, the same Python process can serve another request that just came in, instead of blocking on the first one. (The classic explainer is PEP 492; FastAPI’s async page walks the same idea in app-specific terms.)

Why is it the right shape for this code? Every external thing we touch in a route handler is I/O — Postgres queries, image-bytes lookups, eventually model API calls. While Python is waiting on a Postgres reply, there’s no CPU work for it to do; it should be servicing the next request, not sitting idle. async def + await is what makes that possible without spawning a separate thread per request. You can also write plain def route handlers and FastAPI will run them in a thread pool — that works, but you give up the cheap concurrency.

The discipline: if you write async def, every external call inside has to be await-able. That’s why our session uses from sqlalchemy.ext.asyncio import AsyncSession, our storage uses aiofiles, etc. The async-everywhere discipline from CLAUDE.md rule 6 is the same rule, written in Python.

The Storage Protocol is injected, not constructed. The route’s storage parameter is typed as Storage — the Protocol from backend/app/clients/storage.py — not as LocalStorage. The implementation is wired up by get_storage_client, which is itself a FastAPI dependency that reads Settings and asks the factory from Post 3 for the configured backend. The handler never imports either concrete class. The flip from local to R2 is, structurally, a single environment variable. No code in this file changes.

The single SQL query computes page_count in the database. A naive implementation would fetch episodes first, then loop len(episode.pages) — but that’s an N+1 (one query for the episode list, one per episode to load pages). The outerjoin + group_by + func.count(Page.id) subquery produces one SQL statement that returns (Episode, page_count) tuples. For three episodes this is invisible; for 40 it’s the difference between one query and 41. The full step-by-step of how the subquery, outer join, and COALESCE work together — and why a single direct join would have been worse — is in § Appendix: The list_episodes Query, Built Up Step by Step.

The Annotated[..., Depends(...)] alias pattern. This one needs unpacking if you haven’t seen Annotated before, because it’s load-bearing for the rest of the file.

Plain-English aside: what’s Annotated? Annotated is a typing construct (introduced by PEP 593 in Python 3.9) that lets you attach extra metadata to a type without changing what the type means to a type-checker. The shape is Annotated[ActualType, metadata1, metadata2, ...]. The first slot is the real type; everything after is metadata that frameworks can read at runtime via Python’s introspection. To mypy, Annotated[AsyncSession, Depends(get_session)] is just AsyncSession — the Depends(...) part is invisible to the type system. To FastAPI, the metadata is a hint that says “don’t expect the caller to pass this argument; instead, call get_session() and inject its return value here.” So you get one declaration that satisfies two readers — the type-checker sees the type, the framework sees the wiring.

Why does FastAPI care? Before Annotated was widely available, FastAPI used default arguments for dependency injection: db: AsyncSession = Depends(get_session). That worked, but it was a slight semantic abuse — default arguments are for actual default values, and using them for “this gets injected at call time” muddied the meaning. Annotated is the cleaner pattern the FastAPI team now recommends. Both still work; new code should use Annotated.

In our file, the line SessionDep = Annotated[AsyncSession, Depends(get_session)] reads as “SessionDep is the type AsyncSession, plus a Depends instruction that FastAPI will use to fill it in.” Aliasing the whole expression once at module scope lets every route handler write db: SessionDep instead of repeating db: Annotated[AsyncSession, Depends(get_session)] — saves repeating ~30 characters per handler, and makes the dependency relationship obvious from the name (SessionDep reads better than the Annotated[...] form when you’re scanning a file). Pure ergonomic win, same runtime behavior.

The detail endpoint is structurally the same — fetch one Episode with its pages and per-page characters eagerly loaded, resolve every relative URL through storage.url_for, then return an EpisodeDetail. The full source is in backend/app/api/episodes.py.

---

The Two Route Handlers, End to End

We’ve seen the list handler. Here’s the detail handler in full, because it’s the one the flipbook actually depends on, and the resolution loop is the load-bearing part:

@router.get("/{slug}", response_model=EpisodeDetail)
async def get_episode(slug: str, db: SessionDep, storage: StorageDep) -> EpisodeDetail:
    stmt = (
        select(Episode)
        .where(Episode.slug == slug)
        .options(selectinload(Episode.pages).selectinload(Page.characters))
    )
    episode = (await db.execute(stmt)).scalar_one_or_none()
    if episode is None:
        raise HTTPException(status_code=404, detail=f"Episode '{slug}' not found")

    # Episode-level character roster: union across all pages, deduped by id,
    # sorted by name for stable output.
    seen_char_ids: set[UUID] = set()
    episode_characters: list[CharacterSummary] = []
    for page in episode.pages:
        for char in page.characters:
            if char.id in seen_char_ids:
                continue
            seen_char_ids.add(char.id)
            char_image = (
                await storage.url_for(char.image_url) if char.image_url else None
            )
            episode_characters.append(
                CharacterSummary(id=char.id, name=char.name, image_url=char_image)
            )
    episode_characters.sort(key=lambda c: c.name)

    pages: list[PageDetail] = []
    for page in episode.pages:
        image_url = await storage.url_for(page.image_url)
        thumbnail_url = (
            await storage.url_for(page.thumbnail_url) if page.thumbnail_url else None
        )
        pages.append(
            PageDetail(
                id=page.id,
                page_number=page.page_number,
                image_url=image_url,
                thumbnail_url=thumbnail_url,
                image_metadata=page.image_metadata or {},
                characters=[
                    PageCharacterRef(id=c.id, name=c.name) for c in page.characters
                ],
            )
        )

    return EpisodeDetail(
        id=episode.id,
        slug=episode.slug,
        title=episode.title,
        episode_number=episode.episode_number,
        plot_summary=episode.plot_summary,
        credits_url=episode.credits_url,
        characters=episode_characters,
        pages=pages,
    )

A few last points worth pulling out before we leave the backend:

• selectinload(Episode.pages).selectinload(Page.characters) is intentional. Without it, SQLAlchemy’s default async session would lazy-load episode.pages and page.characters mid-serialization, raising MissingGreenlet on the async path. Chained selectinload issues two extra IN (...) queries — one for the pages of the matched episode, one for the characters of those pages — eagerly, in the same database round-trip cycle as the parent. Three queries total instead of one-plus-N. The SQLAlchemy docs cover the trade-offs against joinedload (which uses LEFT OUTER JOINs and can balloon the result set on deep relationships); for one-to-many like this, selectinload is usually cheaper. The whole N+1-problem story plus the scalar_one_or_none() companion call below is walked through from first principles in § Appendix: A Tour of selectinload and scalar_one_or_none() at the end of the post.
• The 404 path is explicit. FastAPI doesn’t infer “this might 404” from your code; you have to raise it. The error message is intentionally specific — passing the unknown slug back to the client makes debugging in the browser console less of a guessing game.
• The character roster is computed in Python, not SQL. It would be marginally faster as a single CTE-with-DISTINCT — but at ≤10 characters per episode, the Python dedup loop is unambiguous to read in a code review and produces stable, alphabetized output for free.
• The mount path is /api/episodes, set in main.py via app.include_router(episodes.router, prefix="/api/episodes", tags=["episodes"]). Inside the router file, route paths are written as "" (list) and "/{slug}" (detail) — the prefix lives in one place, not duplicated on every decorator.

Mount the router and start the server:

cd backend && uv run uvicorn app.main:app --reload

Smoke-test from a second terminal:

curl -s http://localhost:8000/api/episodes | jq '.episodes | length'
# 1

curl -s http://localhost:8000/api/episodes/ep01-potion-of-flight | jq '.pages[0]'
# {
#   "id": "...",
#   "page_number": 1,
#   "image_url": "http://localhost:8000/images/episodes/ep01-potion-of-flight/pages/001-display.webp",
#   "thumbnail_url": "http://localhost:8000/images/episodes/ep01-potion-of-flight/pages/001-thumbnail.webp",
#   "image_metadata": {"width": 1600, "height": 1131, "blurhash": "...", "dominant_color": "#e7d3a8"},
#   "characters": [{"id": "...", "name": "Carrot"}, {"id": "...", "name": "Pepper"}]
# }

The image_url is absolute and points at the FastAPI static-files mount from Post 3. A browser hitting that URL gets the WebP back. The seam works end-to-end.

Open http://localhost:8000/docs in a browser — Swagger UI renders the two endpoints, the response schemas, the example responses, the 404 path, all from the same Python code with zero extra annotation work. That spec is the wire-format contract the frontend will mirror in TypeScript.

---

The Frontend’s Type Contract: Hand-Rolled, For Now

Now we cross the wire. The frontend’s job is to call those two URLs, parse the JSON, and render it. The two real choices about how to keep its types in sync with the backend:

Option A: Generate the types. Run openapi-typescript over the FastAPI /openapi.json and let it emit a schema.d.ts file the frontend imports from. The backend renames episode_number to number, the next npm run gen:api regenerates, the frontend’s TypeScript compilation breaks loudly. Drift becomes a compile error.

Option B: Hand-write the types. A frontend/src/api/types.ts file with TypeScript interfaces that mirror the Pydantic models. The backend renames a field, somebody has to remember to edit types.ts to match. Drift can sneak in.

Option A is what you want at any non-trivial API size. The drift problem is real, the cost of the generator is one CLI invocation, and the resulting types are exact reflections of the spec.

This post chooses Option B anyway, and the reason is calibration. At two endpoints, the entire types.ts is ~30 lines:

// frontend/src/api/types.ts
export interface ImageMetadata {
  width?: number;
  height?: number;
  blurhash?: string;
  dominant_color?: string;
}

export interface Character {
  id: string;
  name: string;
  image_url?: string | null;
}

export interface Page {
  id: string;
  page_number: number;
  image_url: string;
  thumbnail_url: string | null;
  image_metadata: ImageMetadata;
  characters: Character[];
}

export interface Episode {
  id: string;
  slug: string;
  title: string;
  episode_number: number;
  cover_image_url: string | null;
  page_count: number;
  plot_summary: string | null;
}

export interface EpisodeDetail extends Episode {
  credits_url: string | null;
  characters: Character[];
  pages: Page[];
}

You can read this whole file at a glance and see whether it matches the Pydantic models on the other side. Adding a generator at this scale would mean adding a dev dependency, a build step, a generated file in version control with merge-conflict noise, and a npm run gen:api ritual that doesn’t earn its keep until the API surface is large enough that humans actually miss drift. The hand-rolled version is honest about what’s happening — both sides own the contract, both sides need to read it when they edit. Once the API hits ~6 endpoints or starts adding nested response shapes (think enum fields, discriminated unions, paginated wrappers), graduate to a generator. The seam is one import type { ... } line in the API client — that’s the place that doesn’t change.

The actual API client is a tiny fetch wrapper:

// frontend/src/api/client.ts
import type { Episode, EpisodeDetail } from './types';

const BASE_URL = import.meta.env.VITE_API_BASE_URL ?? '';

async function get<T>(path: string): Promise<T> {
  const res = await fetch(`${BASE_URL}${path}`);
  if (!res.ok) {
    throw new Error(`GET ${path} failed: ${res.status}`);
  }
  return res.json() as Promise<T>;
}

export const api = {
  listEpisodes: () => get<{ episodes: Episode[] }>('/api/episodes'),
  getEpisode: (slug: string) => get<EpisodeDetail>(`/api/episodes/${slug}`),
};

VITE_API_BASE_URL is read from frontend/.env (or empty string in dev, when Vite’s proxy intercepts /api). At two endpoints the indirection of a query library or a typed-fetch wrapper costs more than it pays — but the Promise<T> return types here are the seam any future migration to openapi-fetch or TanStack Query would slot into. Build the seam; defer the library.

---

The Frontend Stack in Three Lines

The full frontend stack for this post is three primary tools — chosen because they are the minimum that gives a credible reading experience without ceremony.

Tool	What it does	Why this one
Vite	Dev server + production bundler for the React app.	Near-instant cold start, native ESM, and a single vite.config.ts. The previous default in this space (Create React App) is deprecated; Vite is what the React team now points at.
React + TypeScript	UI library + type system.	The UI surface is small enough that any framework would work. React + TypeScript is the default in the industry; using anything else here trades signal for novelty.
page-flip (StPageFlip)	A real page-flipping flipbook: corner peel, physics, the works.	The whole point of this UI is that pages flip like a real book. Re-implementing that is a deep rabbit hole; the StPageFlip library is well-maintained, framework-agnostic, ~30 KB minified, and has the right primitives (orientation switching, page-flip events) baked in.

That’s it. No router, no query library, no CSS framework, no state-management library. The picker ↔ reader switch is one useState. Data fetching is useEffect + fetch. CSS is a hand-written stylesheet using CSS variables for the palette. Anything else gets added when something concrete demands it — react-router-dom lands when deep-linking to a page becomes a real feature, a query library lands when caching or focus-refetch starts mattering, an animation library lands when there’s animation to write.

Scaffold the project:

cd path/to/pepper-carrot-companion-workshop
npm create vite@latest frontend -- --template react-ts
cd frontend
npm install page-flip

The Vite config gets one tweak: a dev-server proxy so /api/* and /images/* calls go to FastAPI in development. (In production they go to the same origin via CORS, so the proxy is dev-only.)

// frontend/vite.config.ts
import { defineConfig } from 'vite';
import react from '@vitejs/plugin-react';

export default defineConfig({
  plugins: [react()],
  server: {
    port: 5173,
    proxy: {
      '/api': 'http://localhost:8000',
      '/images': 'http://localhost:8000',
    },
  },
});

Why a proxy if we already have CORS? The § Cross-origin requests subsection above covered the conceptual side — http://localhost:5173 and http://localhost:8000 are different origins, and backend/app/main.py already configures the CORS middleware to allow the dev origin. The proxy is the second mechanism: it routes /api/* and /images/* through Vite at :5173, which makes those fetches look same-origin to the browser and skips the CORS check entirely. The pay-off is a cleaner DevTools network tab in dev. CORS still earns its keep in production, where the dev proxy isn’t running and the frontend (Cloudflare Pages) lives on a different origin than the backend (Fly).

The entry point is a four-line main.tsx:

// frontend/src/main.tsx
import React from 'react';
import ReactDOM from 'react-dom/client';
import { App } from './App';
import './styles/global.css';

ReactDOM.createRoot(document.getElementById('root')!).render(
  <React.StrictMode>
    <App />
  </React.StrictMode>
);

Everything else is App.tsx and two components — we’ll get to all three below.

---

The Flipbook Component: Wrapping StPageFlip Cleanly

StPageFlip is a vanilla-JS library that takes a container element and a list of page elements and gives you a real, physics-y page-flipping flipbook — clicking the corner of a page peels it like a paperback. There’s no official React wrapper, and the imperative API is a square peg for React’s render-time-only model. Wrapping it correctly is the bulk of this section.

The pattern that works: let React own a wrapper <div>, give StPageFlip an inner element React doesn’t render, and destroy/recreate the inner element across episodes. This keeps the two ownership models — declarative for the surrounding chrome, imperative for the library’s DOM subtree — from stepping on each other.

The full component, abridged for the page-flow but preserving every load-bearing bit:

// frontend/src/components/Flipbook.tsx
import { useEffect, useRef, useState } from 'react';
import { PageFlip } from 'page-flip';
import { api } from '../api/client';
import type { Episode, EpisodeDetail } from '../api/types';

interface FlipbookProps {
  episode: Episode;
  onPageChange: (pageNumber: number) => void;
  // Fires on init and whenever PageFlip switches between portrait (single page)
  // and landscape (two-page spread). Lets the parent phrase the page indicator
  // correctly ("Pages N–N+1" when both are visible).
  onOrientationChange?: (mode: 'portrait' | 'landscape') => void;
}

export function Flipbook({ episode, onPageChange, onOrientationChange }: FlipbookProps) {
  const containerRef = useRef<HTMLDivElement>(null);
  const flipRef = useRef<PageFlip | null>(null);
  const onPageChangeRef = useRef(onPageChange);
  const onOrientationChangeRef = useRef(onOrientationChange);
  const [detail, setDetail] = useState<EpisodeDetail | null>(null);
  const [error, setError] = useState<string | null>(null);
  const [currentPage, setCurrentPage] = useState(1);

  // Keep the latest callback in a ref so the PageFlip effect doesn't
  // re-run on identity changes — only when the episode itself changes.
  useEffect(() => { onPageChangeRef.current = onPageChange; }, [onPageChange]);
  useEffect(() => {
    onOrientationChangeRef.current = onOrientationChange;
  }, [onOrientationChange]);

  // Fetch the episode detail when the slug changes.
  useEffect(() => {
    setDetail(null);
    setError(null);
    setCurrentPage(1);
    api.getEpisode(episode.slug).then(setDetail).catch((err) => setError(String(err)));
  }, [episode.slug]);

  // Build the flipbook once the detail is loaded.
  useEffect(() => {
    if (!detail || !containerRef.current) return;
    const wrapper = containerRef.current;

    // Wipe any stale flipbook DOM React doesn't own. React StrictMode's
    // dev-only setup → cleanup → setup cycle can leave the first PageFlip's
    // root behind if its destroy chain doesn't fully unmount; the second
    // flipbook then renders over it and you see duplicate pages mid-flip.
    while (wrapper.firstChild) wrapper.removeChild(wrapper.firstChild);

    // PageFlip takes over the element it's given (and removes it on destroy()),
    // so give it an INNER element React doesn't own.
    const flipRoot = document.createElement('div');
    flipRoot.className = 'flipbook';
    wrapper.appendChild(flipRoot);

    const pageEls: HTMLElement[] = detail.pages.map((page) => {
      const el = document.createElement('div');
      el.className = 'page';
      el.dataset.pageNumber = String(page.page_number);
      const img = document.createElement('img');
      img.src = page.image_url;
      img.alt = `Page ${page.page_number}`;
      img.draggable = false;
      el.appendChild(img);
      flipRoot.appendChild(el);
      return el;
    });

    const flip = new PageFlip(flipRoot, {
      width: 600, height: 847,           // matches 2481×3503 source aspect (~1.412)
      size: 'stretch', minWidth: 280, maxWidth: 1200,
      minHeight: 395, maxHeight: 1700,
      maxShadowOpacity: 0.5,
      showCover: false,
      useMouseEvents: true,
      drawShadow: true,
      usePortrait: true,
      mobileScrollSupport: true,
      flippingTime: 700,
    });
    flip.loadFromHTML(pageEls);

    // Single source of truth: read PageFlip's `getCurrentPageIndex()` directly
    // on every event. The `flip` event's `e.data` is the page index PageFlip
    // just stored internally, which can briefly diverge from what's drawn —
    // most reliably on the single-page spread an odd-page-count episode
    // produces in landscape (page 3 alone in a 3-page episode), and on
    // landscape↔portrait transitions that rebuild the spread layout.
    const reportPage = () => {
      const pageNumber = flip.getCurrentPageIndex() + 1;
      setCurrentPage(pageNumber);
      onPageChangeRef.current(pageNumber);
    };

    flip.on('flip', reportPage);
    flip.on('init', reportPage);              // captures initial spread
    flip.on('changeOrientation', (e) => {
      const mode = (e as { data: 'portrait' | 'landscape' }).data;
      onOrientationChangeRef.current?.(mode);
      reportPage();                            // re-sync after spread rebuild
    });

    // Emit initial orientation immediately so the parent's pill label is
    // correct before any user gesture (PageFlip's own `init` event fires
    // on the next tick, which is too late for the first render).
    onOrientationChangeRef.current?.(flip.getOrientation());
    flipRef.current = flip;

    return () => {
      flip.destroy();        // removes flipRoot from wrapper; React's wrapper stays.
      flipRef.current = null;
    };
  }, [detail]);

  // Preload current ± 2 pages so the next flip has the image ready.
  useEffect(() => {
    if (!detail) return;
    const targets = detail.pages.filter(
      (p) => Math.abs(p.page_number - currentPage) <= 2 && p.page_number !== currentPage
    );
    const links = targets.map((page) => {
      const link = document.createElement('link');
      link.rel = 'preload';
      link.as = 'image';
      link.href = page.image_url;
      document.head.appendChild(link);
      return link;
    });
    return () => { links.forEach((l) => l.remove()); };
  }, [detail, currentPage]);

  if (error) return <div className="error">Failed to load episode: {error}</div>;
  if (!detail) return <div className="loading">Loading episode…</div>;

  return <div ref={containerRef} className="flipbook-wrapper" />;
}

A few details earn their lines:

• The wrapper / inner split. React renders <div className="flipbook-wrapper" ref={containerRef} /> and stops. The first useEffect after the detail loads appends a second <div className="flipbook"> inside, and hands that one to new PageFlip(...). The cleanup function calls flip.destroy(), which removes the inner div but leaves React’s wrapper untouched. When the parent unmounts the component, React removes the wrapper as usual. Two ownership models, two scopes, no stepped-on toes.
• The defensive wrapper wipe (while (wrapper.firstChild) wrapper.removeChild(...)). Belt-and-suspenders for the wrapper/inner split. React StrictMode’s dev-only setup → cleanup → setup cycle is supposed to leave the wrapper empty between iterations because flip.destroy() removes the flipRoot — but if any part of PageFlip’s destroy chain throws or races with a pending init setTimeout, the stale flipbook stays in the DOM and the next iteration’s flipbook renders on top of it. Visually you’d see ghost pages stacked vertically during a flip animation, or the active spread appearing to “move up” because there’s a leftover spread underneath. One short while-loop wipes any leftover children before we appendChild the fresh root, which costs nothing and rules the failure mode out structurally.
• Callbacks live in refs, not in the effect’s dep array. onPageChangeRef and onOrientationChangeRef are updated by tiny effects of their own. The big “build the flipbook” effect doesn’t depend on them — only on [detail] — so it doesn’t rebuild every time the parent passes a new lambda. (A common bug in this kind of wrapper is depending on the callback identity in the heavy effect; cue a full rebuild on every parent re-render.)
• flip.destroy() in the cleanup is non-negotiable. Without it, navigating away from the reader and back leaks event listeners and DOM nodes. In React strict mode (which the project uses) you’d see it immediately as a double-instance; without strict mode you’d see it as gradual performance degradation in production.
• onPageChange reports a 1-indexed page number, read from PageFlip’s own state. Three event handlers — flip, init, and changeOrientation — share a reportPage() helper that does flip.getCurrentPageIndex() + 1 and dispatches the result. We deliberately do not trust the e.data payload of the flip event. That value is the page index PageFlip just stored internally, which can briefly diverge from what’s actually drawn on screen — most reliably on the single-page spread that an odd-page-count episode produces in landscape (e.g. page 3 alone in a 3-page episode), and across landscape↔portrait transitions that rebuild the spread layout. Reading the library’s current state inside each handler sidesteps the drift. (We learned this the hard way; the page-indicator pill briefly read “Page 3 of 3” while the spread visibly showed pages 1 and 2 until we switched to the getCurrentPageIndex() approach.) Post 6’s chat layer will subscribe to exactly this callback to learn what the reader is looking at, so the value being correct matters here, not just in the header.
• The data-page-number attribute powers a pure-CSS page badge. Each .page element gets el.dataset.pageNumber = String(page.page_number); the stylesheet renders that value as a small parchment pill at the bottom-right via content: attr(data-page-number) on the ::after pseudo-element. No JavaScript needed to render the per-page indicator; the data flows from JSON → DOM attribute → CSS.
• Preload of current ± 2 pages. Browsers don’t preload images that aren’t in the visible DOM yet. A <link rel="preload"> injected into <head> for the next two and previous two pages keeps the next flip’s image ready when the reader gets there. Five <link> tags is cheap; a stuttering flip animation looks bad.

The CSS for the badge, the flipbook frame, and the soft shadow lives in frontend/src/styles/global.css. It’s about 50 lines of styling and not interesting on its own; see the source link at the end of the post.

---

Single Page vs Two-Page Spread

The flipbook component above already handles this — flip.on('changeOrientation', ...) fires whenever StPageFlip switches between portrait (single page) and landscape (two-page spread) based on viewport dimensions, and the component forwards the new mode through onOrientationChange and re-emits the visible page via reportPage() (so the page-indicator pill stays accurate when the spread layout rebuilds). But the why is worth a section, because portrait/landscape rendering is a constant source of buggy comic readers and StPageFlip gives us the right primitive almost for free.

The behavior we want:

• Landscape viewport (wide screen, the common laptop case): two-page spread. Pages 2-3 face each other, then 4-5, then 6-7. Same way a real book opens.
• Portrait viewport (phone, tablet, narrow window): one page at a time. Pages flip individually, no facing pair.

StPageFlip handles the switch internally based on the container’s aspect ratio at the moment it computes the layout — initial mount, resize, or explicit update(...) call. The changeOrientation event we subscribe to is how we learn about the switch from outside; the library has already done the work of reshaping the layout by the time the event fires.

The parent (App.tsx) uses this to phrase the page-indicator pill correctly. When orientation is 'landscape' and the right page exists (i.e., we’re not on the final odd page), the pill reads “Pages 4–5 of 9”; otherwise “Page 4 of 9”. Two-line snippet:

const showSpread = orientation === 'landscape' && rightPage > currentPage;
const pageLabel = showSpread
  ? `Pages ${currentPage}–${rightPage} of ${totalPages}`
  : `Page ${currentPage} of ${totalPages}`;

Plain-English aside: what does “spread” mean here? A spread is the pair of two pages a reader sees side-by-side when a real book is open — the verso (left) and recto (right). Most comics are drawn page-by-page, but plenty of pages are spread-aware: page 4 and page 5 of Pepper & Carrot episode 6, for example, are a single watercolor scene that crosses the gutter. Rendering them as one spread on a landscape screen recovers the artist’s intent in a way single-page reading can’t.

---

The Episode Picker and the View Switch

Two pieces remain: a picker that lists episodes and the top-level App.tsx that switches between the picker and the reader.

The picker

A grid of episode cards. Each card is a real click target (the whole card opens the episode), with a small “Read more” toggle inside the summary for plot summaries that exceed three lines. The picker component is the file new readers tend to land on first, so it’s worth showing in full:

// frontend/src/components/EpisodePicker.tsx (abridged)
import { useEffect, useState } from 'react';
import { api } from '../api/client';
import type { Episode } from '../api/types';

export function EpisodePicker({ onSelect }: { onSelect: (e: Episode) => void }) {
  const [episodes, setEpisodes] = useState<Episode[] | null>(null);
  const [error, setError] = useState<string | null>(null);

  useEffect(() => {
    api.listEpisodes().then((r) => setEpisodes(r.episodes)).catch((e) => setError(String(e)));
  }, []);

  if (error) return <div className="error">Failed to load episodes: {error}</div>;
  if (!episodes) return <div className="loading">Loading episodes…</div>;

  return (
    <div className="episode-picker">
      <header className="picker-hero">
        <div className="picker-hero__inner">
          <p className="picker-hero__eyebrow">A reading companion for</p>
          <h1 className="picker-hero__title">Pepper&amp;Carrot</h1>
          <p className="picker-hero__subtitle">
            Step into the world of Hereva alongside a young Chaosah witch and her impulsive cat.
            Pick an episode below to start reading.
          </p>
        </div>
      </header>
      <ul className="episode-grid">
        {episodes.map((ep) => (
          <li key={ep.id}>
            <EpisodeCard episode={ep} onOpen={() => onSelect(ep)} />
          </li>
        ))}
      </ul>
    </div>
  );
}

The pattern worth pulling out is the fetch + useState data path. Three lines: a useEffect fires the request on mount, success calls setEpisodes, failure calls setError. The JSX branches on error and episodes === null to render three states (error / loading / loaded) declaratively. No library involved. This is the part that, in a larger app, would get caching, dedup, and focus-refetch via TanStack Query or SWR — and it’s worth knowing when to graduate. Three signals: (1) the same data is being refetched in multiple components, (2) loading states are flickering on quick re-mounts, (3) you start writing your own cache. None of those bite at one screen.

The inner EpisodeCard (not shown — see the source) renders the cover image, a “Episode N” badge in the corner, the title, the plot summary with the optional “Read more” toggle, and a footer with the page count plus a “Read →” CTA. The whole card has role="button" plus a keyboard handler so it’s accessible to keyboard users without nested-interactive-element warnings — the inner toggle uses stopPropagation so clicking it doesn’t also open the episode.

The view switch

Without a router, App.tsx does the picker ↔ reader switch with a single piece of state:

// frontend/src/App.tsx
import { useState } from 'react';
import { EpisodePicker } from './components/EpisodePicker';
import { Flipbook } from './components/Flipbook';
import type { Episode } from './api/types';

export function App() {
  const [selectedEpisode, setSelectedEpisode] = useState<Episode | null>(null);
  const [currentPage, setCurrentPage] = useState<number>(1);
  const [orientation, setOrientation] = useState<'portrait' | 'landscape'>('landscape');

  if (!selectedEpisode) {
    return <EpisodePicker onSelect={setSelectedEpisode} />;
  }

  const totalPages = selectedEpisode.page_count;
  const rightPage = Math.min(currentPage + 1, totalPages);
  const showSpread = orientation === 'landscape' && rightPage > currentPage;
  const pageLabel = showSpread
    ? `Pages ${currentPage}–${rightPage} of ${totalPages}`
    : `Page ${currentPage} of ${totalPages}`;

  return (
    <div className="app-layout">
      <header className="app-header">
        <button className="header-back" onClick={() => setSelectedEpisode(null)}>
          ← Episodes
        </button>
        <h1>{selectedEpisode.title}</h1>
        <span className="header-page-indicator" aria-live="polite">{pageLabel}</span>
      </header>
      <main className="app-main">
        <Flipbook
          episode={selectedEpisode}
          onPageChange={setCurrentPage}
          onOrientationChange={setOrientation}
        />
      </main>
    </div>
  );
}

Three pieces of state lifted up here — selectedEpisode, currentPage, orientation — are the seams Post 6 (chat) and later posts (world graph) will plug into. The chat panel needs selectedEpisode.slug to scope its retrieval, currentPage to scope spoiler filtering, and orientation to phrase its context hint (“Reading pages 4–5”). All three are already here, lifted to where any sibling component can read them.

What’s not here: no react-router-dom, no URL synced to the selected episode, no deep-link to a specific page. Those are absolutely worth adding — and Post 6 will, when the chat panel needs durable page state across reloads — but they’re not what this post is about, and adding them now would muddle the picker/reader narrative.

---

The Request, End to End

Here’s everything we just built, in one picture. A reader clicks an episode in the picker, the browser asks for that episode’s pages, the FastAPI handler joins Postgres with the Storage Protocol’s URL composition, and the JSON comes back with absolute URLs the <img> tags can drop straight into src.

The full request flow. The browser issues one JSON request and gets back absolute image URLs; the <img> tags then fetch the bytes directly from FastAPI’s static-files mount (or, in production, from R2 with the same key shape). The Storage Protocol is the only place URLs are composed — flipping STORAGE_BACKEND=r2 in .env rewires the same key shape to a different URL prefix with zero migration. Click the diagram to open it full-size in a new tab.

The architectural property to notice: there is no shared state between the two halves except the JSON contract. The frontend has no idea what database is on the other end of the API; the backend has no idea what frontend framework is consuming the spec. Either side can be replaced — swap React for SolidJS, swap FastAPI for Litestar — with the other untouched. The OpenAPI spec is what makes this true in practice rather than just in slogan.

---

Running It on Your Laptop

The § Tour + Quick Start at the top of this post covered the three commands you need to see the app render — Postgres up, backend on :8000, frontend on :5173. This section is the verification recipe that complements it: the proofs that the seams in the post actually hold, plus the GIF of the end result so you know what to expect.

What it looks like running

The episode picker plus the flipbook reader, end to end. Three pages of episode 1 rendering from the local backend through LocalStorage.url_for() and <img> tags. Resize the window to portrait and the flipbook collapses to single-page mode; back to landscape and it rebuilds the spread. (Click to enlarge.)

The smoke tests prove the seam

Three hermetic pytest cases in backend/tests/test_episodes_api.py cover the URL-composition seam without needing Postgres ingested. They inject a fake DB session and a stubbed Storage via FastAPI’s dependency_overrides, then assert:

1. GET /api/episodes returns the episode with the cover URL resolved through storage.url_for().
2. GET /api/episodes/{slug} returns every page with image_url and thumbnail_url starting with the resolved prefix — proving the relative-key → absolute-URL substitution happened.
3. GET /api/episodes/does-not-exist returns 404.

cd backend && uv run pytest -v tests/test_episodes_api.py
# 3 passed

Test what’s load-bearing — the relative key turning into an absolute URL at response time — and skip what isn’t. The flipbook’s render path is much faster to verify with eyes on a browser than with a JSDOM test, so don’t write one.

Type-check + build the frontend

cd frontend
npm run type-check                            # tsc -b --noEmit, no output = pass
npm run build                                 # Vite production build

If the backend ever renames a Pydantic field in a way that drifts from frontend/src/api/types.ts, this is the place you’ll catch it — either a TypeScript compile error during type-check or a runtime undefined when a component reads the renamed-away field. The hand-rolled contract earns its keep when you run these two commands after every API change. (When that becomes annoying — see § The Frontend’s Type Contract for when to graduate to openapi-typescript.)

One more sanity check: the bookmarkable URL isn’t here yet

If you try copy-pasting the reader URL — it stays http://localhost:5173/ even after you click into Episode 1, because we haven’t wired up react-router-dom. That’s a feature gap, not a bug, and it’s the right call for this post: nothing yet uses a deep link. Post 6 introduces the chat session, which is where a URL-synced page index becomes necessary — and that’s when a router earns its place. Until then, the picker → reader switch is one useState and that’s enough.

---

Key Takeaways

1. Design the API surface backwards from screens, not forward from tables. Two screens, two endpoints. Designing forward from the episodes and pages tables would have given you three or four “RESTful” endpoints that match nothing the UI actually loads. Backwards-from-screens produces fatter, fewer responses that match how the frontend renders — which is what minimizes round-trips and removes the “do I need to make another call?” loop from every component.

2. Make the wire format an artifact, not folklore. FastAPI’s OpenAPI spec is the contract; the Pydantic response models are the source of truth that produces it; the frontend’s types.ts mirrors the same shapes. At two endpoints, mirroring by hand is honest and legible — both sides own the contract and both sides can read it. Graduate to openapi-typescript (or similar) when the API surface hits ~6 endpoints or when nested response shapes start showing up. The seam is the same either way.

3. The URL-composition seam from Post 3 paid off the moment the frontend showed up. Storing relative keys in the DB and composing absolute URLs at API response time is invisible discipline while no one’s looking — but it’s what makes the frontend possible without a migration when storage swaps from local to R2. The route handler doesn’t even know which storage is on the other side of url_for(). That’s the whole point of an abstraction earning its keep.

4. StPageFlip is a vanilla-JS library held inside a React component via wrapper + inner div + cleanup. The instance lives in a useRef, not in state, because flipping a page should not re-render React. A wrapper <div> belongs to React; an inner <div> belongs to StPageFlip; flip.destroy() in the effect cleanup keeps the two ownership models from stepping on each other. This pattern — imperative third-party library wrapped in a declarative component — generalizes to most “DOM library + React” cases: Mapbox, Three.js, CodeMirror, anything that wants to own a DOM subtree. It’s worth being fluent at; it shows up everywhere.

5. Plain fetch + useState is enough for two endpoints. Three signals to graduate to TanStack Query / SWR / react-query: (a) the same data is being refetched in multiple components, (b) loading states flicker on quick re-mounts, (c) you find yourself writing your own cache. None of those bite at one screen. Adding a library before the pain hits is just speculative complexity; deferring it until the third signal lights up is when you get the most signal from the upgrade.

6. Single-page versus two-page spread is one library event plus a media-query. flip.on('changeOrientation', ...) fires whenever the viewport flips between portrait and landscape; the component forwards the new mode through a callback; the parent reshapes the page-indicator pill. The fact that real comics have facing spreads — Pepper & Carrot episode 6 has at least one cross-gutter watercolor — is an artist decision the reader UI should honor, and the spread mode honors it for free. Single-page mode is the safety net for narrow viewports, not the canonical view.

---

Next up: Post 6 — The RAG Layer: Spoiler-Safe Retrieval Without Trusting the Prompt. With a working reader telling the parent component which page the user is on (the onPageChange callback we wired up but didn’t consume yet), we can build the chat pipeline that actually grounds answers in only the pages the reader has reached. We’ll write a RetrievalService that filters Chroma queries by (episode_number, page_number) at the data layer, exercise it with curl, and prove the spoiler filter holds even when the user explicitly tries to jailbreak it. No chat panel UI yet — the streaming React panel lands in Post 7.

The workshop starter that backs this post is at https://github.com/bearbearyu1223/pepper-carrot-companion-workshop — pull the latest to pick up backend/app/api/episodes.py, the smoke tests, the Vite frontend, and the <Flipbook> component. The full source repository and the public live-demo URL go up alongside the final post — the deploy guide — once it’s published.

Pepper & Carrot is © David Revoy, licensed CC BY 4.0. All credit to him for the source material that made this project possible.

All opinions expressed are my own.

---

Appendix: Going Deeper

Three pieces of the code the main flow walked past with one-line bullets are worth a deeper look — two SQLAlchemy idioms (one per route handler) and the pydantic-settings machinery that loads .env. Each subsection below builds the concept from first principles, then circles back to the exact line in the workshop starter so the connection is visible.

The list_episodes Query, Built Up Step by Step

The list_episodes handler builds one SQL statement that returns every episode along with how many pages each one has, sorted by episode number. The interesting part is how it computes the page count efficiently — using a subquery, an outer join, and COALESCE together. This appendix builds the query up the way the code does, then explains why it’s shaped that way instead of a naive single-join.

The handler’s query, in full, for reference:

page_counts = (
    select(Page.episode_id, func.count(Page.id).label("page_count"))
    .group_by(Page.episode_id)
    .subquery()
)
stmt = (
    select(Episode, func.coalesce(page_counts.c.page_count, 0).label("page_count"))
    .outerjoin(page_counts, Episode.id == page_counts.c.episode_id)
    .order_by(Episode.episode_number.asc())
)
rows = (await db.execute(stmt)).all()

Stage 1: the subquery (counting pages per episode)

page_counts = (
    select(Page.episode_id, func.count(Page.id).label("page_count"))
    .group_by(Page.episode_id)
    .subquery()
)

This piece, by itself, is asking the pages table: “for each episode, how many pages do you have?” In raw SQL:

SELECT episode_id, COUNT(id) AS page_count
FROM pages
GROUP BY episode_id;

Walking through the SQLAlchemy pieces:

• select(Page.episode_id, func.count(Page.id)) — select two columns: the episode each page belongs to, and a count.
• func.count(Page.id) — func is SQLAlchemy’s gateway to SQL functions. func.count(...) generates a SQL COUNT(...) call. We count Page.id (which is never null) rather than * — same result here, but explicit.
• .label("page_count") — gives the COUNT expression a column alias, so we can refer to it later as page_count instead of an auto-generated name like count_1.
• .group_by(Page.episode_id) — collapses rows that share the same episode_id into one row, so the COUNT becomes per-episode rather than across the whole table.
• .subquery() — wraps the whole thing so it can be used as a virtual table inside another query, not executed on its own.

The result, conceptually, is a temporary table that looks like:

episode_id	page_count
uuid-A	12
uuid-B	8
uuid-C	15

Note one thing: episodes with zero pages don’t appear here at all. If no Page row references an episode, that episode_id never enters the GROUP BY. This matters in a moment.

Stage 2: the main query (joining episodes against the counts)

stmt = (
    select(Episode, func.coalesce(page_counts.c.page_count, 0).label("page_count"))
    .outerjoin(page_counts, Episode.id == page_counts.c.episode_id)
    .order_by(Episode.episode_number.asc())
)

In raw SQL, roughly:

SELECT episodes.*, COALESCE(pc.page_count, 0) AS page_count
FROM episodes
LEFT OUTER JOIN (
    SELECT episode_id, COUNT(id) AS page_count
    FROM pages
    GROUP BY episode_id
) AS pc ON episodes.id = pc.episode_id
ORDER BY episodes.episode_number ASC;

Three things are happening here.

The outerjoin

.outerjoin(page_counts, Episode.id == page_counts.c.episode_id)

This is a LEFT OUTER JOIN between episodes and the page_counts subquery. The join condition is Episode.id == page_counts.c.episode_id — match each episode to its row in the count table.

The difference between inner join and outer join matters here:

• Inner join → only return episodes that have a matching row in page_counts. Episodes with zero pages would vanish.
• Outer join (left) → return every episode, even if there’s no matching row in page_counts. Episodes with no pages still appear, just with NULL for page_count.

The picker UI wants to show all episodes — including any that were just created but haven’t been ingested yet, so they have no Page rows pointing at them. Outer join is the right call.

The .c in page_counts.c.episode_id means “columns of this subquery.” When you turn a select into a subquery, you access its columns through .c.<name>.

The coalesce

func.coalesce(page_counts.c.page_count, 0).label("page_count")

COALESCE in SQL returns the first non-NULL value from its arguments. So COALESCE(page_count, 0) means “use page_count if it has a value, otherwise use 0.”

Why this is needed: the outer join leaves page_count as NULL for any episode with no matching row in the subquery (i.e., zero pages). Without coalesce, you’d get None in Python, and the downstream code int(page_count) would crash with TypeError: int() argument must be a string... not 'NoneType'.

coalesce substitutes 0, which is the truthful answer for “episode has no pages” and a clean integer for the cast.

The pair works together: outer join keeps every episode in the result, coalesce converts the resulting NULLs to zeros.

The order_by

.order_by(Episode.episode_number.asc())

Sort the final result by episode_number ascending. Episode 1 first, then 2, then 3. Without this, the database can return rows in any order it likes — usually whatever’s convenient for the storage engine. For a UI that displays episodes in narrative order, you need an explicit sort.

Stage 3: executing and unpacking

rows = (await db.execute(stmt)).all()

.all() returns a list of Row objects — one per episode. Each row has two pieces (because the select had two arguments): the Episode ORM object and the page_count integer.

for episode, page_count in rows:
    ...

The tuple unpacking works because each Row behaves like a tuple. episode gets the full Episode ORM object (all its columns mapped to attributes), page_count gets the integer count.

Why a subquery instead of just joining pages directly?

This is the subtle bit. A natural-looking alternative would be:

# Don't do this
stmt = (
    select(Episode, func.count(Page.id))
    .outerjoin(Page, Episode.id == Page.episode_id)
    .group_by(Episode.id)
    .order_by(Episode.episode_number.asc())
)

This seems simpler — one query, no subquery. And it would work. But it has two real drawbacks:

1. Grouping is awkward. When you GROUP BY Episode.id, strict SQL dialects (like Postgres) require every non-aggregated column to appear in the GROUP BY clause too. So you’d need .group_by(Episode.id, Episode.title, Episode.slug, ...) — tedious and fragile every time you add a column to episodes.
2. It mixes concerns. The pages table is joined directly into a query about episodes, which means the query planner has to figure out how to deduplicate. With many pages per episode, the intermediate result set is large before the GROUP BY collapses it.

The subquery approach computes the per-episode counts first (small result: one row per episode), then joins that compact summary to the episodes table. Cleaner SQL, cleaner planner work, and the main select(Episode, ...) doesn’t need a GROUP BY at all because the join is one-to-one — each episode matches at most one row in page_counts.

The whole picture, in one mental snapshot

┌─────────────────────────┐
│ pages                   │
│ (many rows per episode) │
└───────────┬─────────────┘
            │ GROUP BY episode_id, COUNT(id)
            ▼
┌─────────────────────────┐
│ page_counts (subquery)  │
│ episode_id | page_count │
│ (one row per episode    │
│  that has pages)        │
└───────────┬─────────────┘
            │ LEFT OUTER JOIN
            │ on episodes.id = page_counts.episode_id
            ▼
┌─────────────────────────┐
│ episodes ⨝ page_counts  │
│ + COALESCE(NULL → 0)    │
│ + ORDER BY episode_num  │
└───────────┬─────────────┘
            ▼
    rows: [(Episode, count), ...]

One round trip to the database, all episodes returned with their page counts, zero counts handled correctly, results sorted.

The one-sentence version

Build a small episode_id → page count table with a GROUP BY subquery, left-join it onto episodes so every episode appears (even with zero pages), use COALESCE to turn the NULLs from that join into zeros, and order the result by episode number — all in one query.

---

The get_episode Query — selectinload and scalar_one_or_none()

The get_episode handler walked past two SQLAlchemy idioms with one-line explanations in the main flow:

• selectinload(Episode.pages).selectinload(Page.characters) — eager loading, chained two levels deep.
• (await db.execute(stmt)).scalar_one_or_none() — extracting a single ORM object from the result.

Both deserve more depth than a single bullet, because both are the right answer to questions that come up in every async-SQLAlchemy app. This appendix walks each one from first principles, then circles back to the exact line in get_episode so the connection is visible.

The N+1 problem (and why selectinload is the antidote)

Suppose you fetch an episode and want to list its pages, with no eager-loading hint:

result = await db.execute(select(Episode).where(Episode.slug == slug))
episode = result.scalar_one_or_none()
for page in episode.pages:     # ← what happens here?
    print(page.page_number)

By default, SQLAlchemy is lazy: when you wrote select(Episode), it ran one query for the episode. The pages relationship was not loaded. The moment your code touches episode.pages, SQLAlchemy thinks “oh, you want pages now” and fires another query: SELECT * FROM pages WHERE episode_id = ?.

That’s 2 queries for one episode. Annoying, but manageable. Now add characters:

for page in episode.pages:            # 1 extra query to load pages
    for char in page.characters:      # ← 1 extra query PER PAGE for characters
        print(char.name)

If the episode has 10 pages, that’s:

• 1 query for the episode
• 1 query for all the pages
• 10 queries — one per page — for the characters

12 queries for one API request. Scale to 50 pages → 52 queries. This is the N+1 problem: 1 initial query, then N extra queries, one per parent row.

In async mode it’s even worse: SQLAlchemy’s default lazy loading actually raises an error in an async session, because the implicit query would block the event loop. So you’d see a crash, not just slowness — which is the MissingGreenlet traceback a beginner hits the first time they reach for episode.pages inside an async handler without thinking about eager loading.

selectinload tells SQLAlchemy: “when you load these episodes, also load their pages — in a separate but bulk query.”

stmt = select(Episode).options(selectinload(Episode.pages))

SQLAlchemy now runs:

-- Query 1: get the episode
SELECT * FROM episodes WHERE slug = 'ep01-potion-of-flight';

-- Query 2: get ALL pages for those episodes in one shot
SELECT * FROM pages WHERE episode_id IN (<episode_id>);

Two queries total, no matter how many pages. The pages are pre-loaded and attached to episode.pages before your code ever touches them. No more lazy loading, no surprises. The name is literal: it loads related objects using a SELECT … IN (…) query.

Chaining for nested relationships

Our handler has two levels of relationships: Episode → Pages → Characters. Pre-loading just pages isn’t enough — characters would still N+1. So we chain:

.options(selectinload(Episode.pages).selectinload(Page.characters))

Read this left-to-right: “when loading episodes, eagerly load pages; and when loading those pages, eagerly load characters.”

SQLAlchemy now runs three queries total:

-- Query 1: the episode
SELECT * FROM episodes WHERE slug = 'ep01-potion-of-flight';

-- Query 2: all pages for the episode
SELECT * FROM pages WHERE episode_id IN (?);

-- Query 3: all characters across all those pages
SELECT * FROM characters
JOIN page_characters ON ...
WHERE page_characters.page_id IN (?, ?, ?, …);

Three queries instead of fifty-something. By the time your handler reaches for page in episode.pages: for char in page.characters: …, everything is already in memory. No more queries fire.

Why not just JOIN everything?

There’s a sibling strategy called joinedload that does use a SQL JOIN:

.options(joinedload(Episode.pages))

This pulls episode + pages in one query with a JOIN. Sounds better, right? Fewer queries! But JOINs have a problem for collections: if an episode has 10 pages, the JOIN duplicates the episode row 10 times in the result set. With a second JOIN to characters, you get a cartesian explosion — 10 pages × 5 characters each = 50 rows where many fields repeat. SQLAlchemy deduplicates in Python, but you’ve still paid to transfer the redundant bytes over the wire.

selectinload avoids this. Each table is queried separately and cleanly, with no row multiplication. For one-to-many and many-to-many relationships (like Episode → Pages and Page ↔ Characters), it’s usually the right default.

The rule of thumb:

Strategy	Best for	What it does
joinedload	*-to-one relationships (e.g., Page → Episode, where each page has exactly one episode)	One JOIN, no row duplication.
selectinload	*-to-many relationships (e.g., Episode → Pages)	One extra SELECT … IN (…) per relationship level. Avoids cartesian blow-up.

Our handler uses selectinload for both hops because both are to-many: an episode has many pages, a page has many characters. (Reference: SQLAlchemy loader-strategy docs.)

What scalar_one_or_none() actually does

The other piece of the handler:

episode = (await db.execute(stmt)).scalar_one_or_none()

This method does three things at once: pick the first column, expect at most one row, return None if there isn’t one. Let’s unpack each.

execute() returns a Result, not the data. When you run await db.execute(stmt), you don’t get rows directly — you get a Result object. Think of it as a cursor or iterator over the rows the database sent back. You then call a method on it to extract what you actually want:

result = await db.execute(stmt)           # a Result object, not data
episode = result.scalar_one_or_none()     # now you have the episode (or None)

Our code just chains these together: (await db.execute(stmt)).scalar_one_or_none(). Same thing, inline.

Decoding the name piece by piece. The method name reads like three modifiers stacked together:

• scalar — return just the first column of each row, not the whole row tuple. When you write select(Episode), the result rows are technically tuples like (Episode,) — a one-element tuple containing the ORM object. scalar unwraps that tuple and gives you just the Episode directly. Without it you’d have to write row[0] everywhere.
• one — expect exactly one row. If there are zero or many, raise an error.
• or_none — modify “one” to allow zero. So now: expect zero or one row. Multiple rows still raise.

Combine them and you get: “give me the first column of the single row, or None if there’s no row, but blow up if there are multiple rows.”

The whole Result method family

SQLAlchemy has a matrix of these methods. The pattern is easier to remember once you see them together:

Method	Returns	Zero rows	One row	Many rows
.scalar_one()	the value	raises NoResultFound	returns it	raises MultipleResultsFound
.scalar_one_or_none()	the value or None	returns None	returns it	raises MultipleResultsFound
.scalar()	the value or None	returns None	returns it	returns the first (silently ignores the rest)
.scalars().all()	list of values	[]	[value]	[v1, v2, …]
.scalars().first()	the value or None	None	returns it	returns the first (silently ignores the rest)
.one()	a Row tuple	raises	returns it	raises
.all()	list of Row tuples	[]	one-element list	full list

Three distinctions worth flagging because they’re the ones that catch beginners:

• scalar_one_or_none vs scalar — both return None for zero rows, but scalar_one_or_none raises on multiple rows while scalar silently picks the first. The _one version is safer because it catches bugs (a WHERE slug = ? lookup should never return two rows; if it does, you want to know).
• scalar_one_or_none vs scalar_one — the _or_none suffix turns “must exist” into “may not exist.” Use _or_none when missing is a valid outcome (lookup by slug → 404 is fine). Use scalar_one when missing means something is broken (loading a record you just created and know exists).
• scalar_one_or_none vs scalars().first() — both return one item or None, but first() silently truncates if there are many. scalar_one_or_none raises. Same safety story.

Why it’s the right choice in get_episode

stmt = (
    select(Episode)
    .where(Episode.slug == slug)
    .options(selectinload(Episode.pages).selectinload(Page.characters))
)
episode = (await db.execute(stmt)).scalar_one_or_none()
if episode is None:
    raise HTTPException(status_code=404, detail=f"Episode '{slug}' not found")

The logic decomposes neatly:

1. A slug lookup should return at most one episode. The episodes.slug column has a unique constraint (see docs/data-model.md), so two matches would be a data-integrity violation. scalar_one_or_none raises MultipleResultsFound if that ever happens — loud failure, easy to debug.
2. Zero matches is normal. The user might request a slug that doesn’t exist. That’s a 404, not a 500. _or_none returns None instead of raising, and the next line handles it with a clean HTTPException.
3. You want the ORM object, not a tuple. The scalar prefix unwraps (Episode,) to just Episode, so episode.pages works directly without row[0].pages.

All three concerns are addressed by that one method call. It’s the precise tool for “look up a single record by a unique key.”

Mental model

Lazy loading is like ordering food one bite at a time: ask for the salad, eat it, ask for the soup, eat it, ask for the main course. Many trips to the kitchen.

selectinload is telling the waiter at the start: “I want the full meal — bring it all out together.” A couple of trips to the kitchen at the start, then you eat at your own pace without interruption.

For a web request that knows what data it needs, the second pattern is almost always what you want.

And for scalar_one_or_none and its siblings, the mental model is just say what you expect, and SQLAlchemy will enforce it:

You expect…	Use
Exactly one row, must exist	scalar_one()
Zero or one row, missing is OK	scalar_one_or_none() ← what get_episode does
A list of rows	scalars().all()

Pick the method that matches your real expectation about the data, and SQLAlchemy will enforce it for you. Code that says what it means is code that fails loudly when the world doesn’t match — which is exactly the kind of failure you want.

---

How Settings Reads Your .env

If you’ve been wondering how settings.cors_origins in backend/app/main.py ends up containing ["http://localhost:5173"] without anyone explicitly opening a file or parsing anything, this appendix walks the chain. It’s optional reading — every other post in the series uses Settings without needing this depth — but if you’re new to pydantic-settings the magic can feel like, well, magic. The same questions resurface when an env-var change doesn’t seem to take effect or when you want to know exactly what overrides what.

The class definition

Here’s the relevant excerpt from backend/app/config.py:

from pathlib import Path
from pydantic import Field
from pydantic_settings import BaseSettings, SettingsConfigDict

# Anchor the .env lookup to the repo root so settings load identically
# whether the process starts from the repo root, backend/, ingestion/, or
# anywhere else. config.py lives at backend/app/config.py — parents[2] is
# the repo root.
_PROJECT_ROOT = Path(__file__).resolve().parents[2]


class Settings(BaseSettings):
    model_config = SettingsConfigDict(
        env_file=_PROJECT_ROOT / ".env",
        env_file_encoding="utf-8",
        case_sensitive=False,
        extra="ignore",
    )

    # === Database ===
    postgres_user: str = "peppercarrot"
    postgres_host: str = "localhost"
    # ... 30+ more fields, every one with a default ...
    cors_origins: list[str] = Field(default_factory=lambda: ["http://localhost:5173"])

Three things to notice before we get to the four SettingsConfigDict arguments:

1. BaseSettings is from pydantic-settings, not from pydantic itself. Pydantic-settings is a separate package layered on top of pydantic for the specific job of “load typed config from environment variables and .env files.” The split exists because most pydantic models don’t need that machinery — only application config does.
2. model_config is a magic attribute name. Pydantic v2’s metaclass reads any class attribute named model_config at class-definition time to configure model behavior. You never reference it from application code. It’s pydantic v2’s replacement for the older class Config: inner class you might have seen in v1 tutorials — same idea, cleaner syntax.
3. Every field has a default. That means Settings() works even with no .env file at all — it falls back to the in-code defaults. The .env file is an override, not a requirement. This is what lets a brand-new contributor git clone the repo and run pytest without touching anything.

The four SettingsConfigDict arguments, one by one

Each argument configures one piece of load behavior. Removing any one of them breaks a specific thing — the table below pairs each with the concrete symptom of its absence.

Argument	What it does	What breaks if removed
env_file=_PROJECT_ROOT / ".env"	Tells pydantic-settings to read this specific file at construction time.	No .env is loaded at all; every field falls back to its hardcoded default. POSTGRES_HOST=postgres in .env is silently ignored.
env_file_encoding="utf-8"	Pins the file encoding.	Reads with the system locale — usually fine on macOS/Linux, sometimes Windows-1252 on Windows. Non-ASCII values in .env (an accented password) parse differently across developers’ machines.
case_sensitive=False	Matches env var names case-insensitively.	.env containing POSTGRES_USER=alice (uppercase, Unix convention) no longer maps to postgres_user: str (lowercase, Python convention). You’d have to write .env in lowercase, which looks wrong in a shell context.
extra="ignore"	Drops keys in .env that aren’t fields on Settings.	Settings() raises ValidationError because .env carries VITE_API_BASE_URL=... for Vite, and pydantic doesn’t know that’s a frontend variable. The backend won’t boot.

You can prove any of these by temporarily flipping the argument and watching what changes. For example, with case_sensitive=True:

cd backend && uv run python -c "
from app.config import get_settings
s = get_settings()
print('postgres_host =', s.postgres_host)
"
# Output: postgres_host = localhost
# (the DEFAULT — .env's POSTGRES_HOST=postgres no longer matches.)

Flip back to case_sensitive=False and the value becomes postgres again.

Why the _PROJECT_ROOT anchoring matters

This is subtle but important. _PROJECT_ROOT = Path(__file__).resolve().parents[2] computes the repo root from config.py’s own filesystem location — not from the current working directory. The same code is imported from multiple working directories:

• cd backend && uv run uvicorn app.main:app (CWD = backend/)
• cd ingestion && uv run python ingest.py (CWD = ingestion/)
• pytest from the repo root (CWD = repo root)

Without anchoring — i.e., if env_file=".env" were passed as a plain relative path — pydantic-settings would resolve it against whichever CWD was active when the process launched. Three different CWDs → three different effective .env paths → “why does the backend find my .env but the ingestion script doesn’t?” three months from now. Anchoring to __file__-derived path solves this once. Every consumer of Settings sees the same single file.

The precedence chain

When you call Settings() (or, more commonly, get_settings() which caches the result), pydantic-settings walks a fixed precedence order from highest to lowest:

1. Explicit constructor arguments — Settings(postgres_user="alice") always wins. (Used mostly in tests.)
2. os.environ — env vars set in the shell before launch.
3. .env file values — what’s written in the file at env_file=….
4. In-code defaults — the right-hand side of each : str = "..." declaration on the class.

Highest match wins. So if you want to override .env for one run, just prefix the command:

POSTGRES_HOST=other-host uv run uvicorn app.main:app
# Settings sees POSTGRES_HOST=other-host from os.environ (rank 2),
# even though .env says POSTGRES_HOST=postgres (rank 3).

The same chain governs production, but the source shifts — rank 2 (os.environ) becomes where everything comes from, because containers don’t typically ship a .env file. The next subsection unpacks that.

Where the values come from in production (Docker, Fly, Modal)

In local dev, Settings reads from your .env file at rank 3. In any containerized deployment, it usually doesn’t — and the question that always comes up the first time you deploy is “how does the container even get those env vars set?” This subsection answers that.

Two unrelated files share the name .env

Before anything else: there are two completely different .env mechanisms in the world. They share a filename and nothing else.

.env	Who reads it	When
pydantic-settings .env (this appendix)	The Python process, inside Settings(), via env_file=….	At runtime, on whatever filesystem Python is running on.
Docker Compose .env	The docker compose CLI, before processing docker-compose.yml.	At orchestration time, to interpolate ${VARS} inside the compose file.

These are unrelated. They sometimes contain different keys. People mix them up all the time. For the rest of this subsection, .env means the pydantic-settings one.

How env vars get into a container

Every Linux process inherits an environ block — a list of KEY=VALUE strings — from its parent. Docker is the parent of your container’s main process (uvicorn for us), and it sets that block based on whichever mechanism you ask for:

• docker run -e KEY=VALUE — pass one variable per flag. Explicit, no file.
• docker run --env-file production.env — Docker reads the file on the host and converts each line to an env var on the container.
• docker-compose.yml with environment: — declarative form of -e. Can substitute values from Compose’s own .env (the orchestration kind) via ${VAR} syntax.
• docker-compose.yml with env_file: — declarative form of --env-file.
• Platform secrets — fly secrets set KEY=VALUE on Fly.io, modal.Secret on Modal, Secret and ConfigMap resources on Kubernetes. The platform injects them into the container at boot.

All five end up in the same place: os.environ inside the container. From there, pydantic-settings finds them at rank 2 of the precedence chain.

What goes inside the image, and what doesn’t

A reasonable production Dockerfile for this project looks roughly like:

FROM python:3.12-slim
COPY backend/ /app/backend/
# Notice what's absent: we do NOT copy .env into the image.
WORKDIR /app/backend
CMD ["uvicorn", "app.main:app", "--host", "0.0.0.0", "--port", "8000"]

COPY .env /app/.env is intentionally missing. Baking secrets into an image is a leak — anyone who pulls the image (or scrapes the registry, or recovers a backup) can extract them. Instead:

• Your .env file stays on developer laptops only.
• In production, your orchestrator (Compose / Fly / Modal / K8s / whatever) injects the same keys as os.environ entries on the running container.
• Settings() runs inside the container and:
  1. Tries to open env_file=/app/.env → file doesn’t exist → that rung of the chain is silently skipped.
  2. Reads os.environ → finds POSTGRES_HOST, CORS_ORIGINS, etc. set by the orchestrator → uses those.
  3. Anything not in os.environ falls through to the in-code defaults.

The precedence chain is unchanged; one of its rungs (the .env file) is just empty in prod.

The chain, redrawn for the two scenarios side by side:

Rank	Source	Local dev	Production (Docker / Fly / Modal)
1	Settings(...) kwargs	Not used	Not used
2	os.environ	What your shell exported, if anything	Whatever your orchestrator injected ← the loaded path
3	.env file (env_file=)	Your local .env ← the loaded path	Usually absent inside the container
4	In-code defaults	Fills any gaps	Fills any gaps

Same code, two different fill paths. That’s the property that makes a STORAGE_BACKEND=r2 change in one environment work without recompiling anything in another.

Concrete example: this project on Fly.io

When Post 10 sets up the Fly deploy (forthcoming — that post lands at the end of the series), the relevant ritual is roughly:

# One time, when first deploying:
fly secrets set \
  POSTGRES_HOST="ep-quiet-…neon.tech" \
  POSTGRES_USER="peppercarrot" \
  POSTGRES_PASSWORD="…" \
  STORAGE_BACKEND="r2" \
  R2_BUCKET="peppercarrot-images" \
  R2_ACCESS_KEY_ID="…" \
  R2_SECRET_ACCESS_KEY="…" \
  CORS_ORIGINS='["https://flipbook.pages.dev"]'

Fly stores those encrypted, and on every container boot it injects them as env vars into the process environment. Inside the container, when uvicorn starts up:

• app.main:app imports → app.config runs → get_settings() constructs Settings().
• pydantic-settings sees no /app/.env file → rank 3 skipped.
• Reads os.environ → finds STORAGE_BACKEND=r2, CORS_ORIGINS=[…], all the Neon and R2 credentials → uses them.
• get_storage(settings) sees storage_backend == 'r2' → returns an R2Storage instance.
• The same code that talked to LocalStorage in dev now talks to Cloudflare R2 in prod.

No code in the workshop changes between dev and prod. Only the origin of the values does. That’s the property the Post 3 Storage Protocol was designed to land cleanly.

One non-obvious gotcha

If you mistakenly COPY .env /app/.env into the production image and your orchestrator sets the same keys via secrets, both happen — but os.environ wins (rank 2 > rank 3 in the precedence chain). So nothing visibly breaks. But you’ve leaked the dev secrets into the image regardless, which is the real cost. Pin the lesson: never bake secrets into an image layer. Use the orchestrator’s secret-injection path instead.

Inspecting a loaded Settings instance

When you’re debugging “why isn’t my env var taking effect?”, the fastest tool is model_dump_json:

cd backend && uv run python -c "
from app.config import get_settings
print(get_settings().model_dump_json(indent=2))
"

That dumps every field on Settings with its currently-loaded value, regardless of whether the value came from .env, an env var, or the in-code default. If the value you see isn’t what you expect, the env var didn’t make it through one of the four layers above — and looking at the precedence chain usually tells you which.

Where this shows up in the workshop

get_settings() is called in three places in the workshop starter:

• backend/app/main.py — at app startup, to read cors_origins, local_image_dir, storage_backend, etc.
• backend/app/api/episodes.py — via the get_storage_client FastAPI dependency, which calls get_settings() and hands the result to get_storage(settings) to build the right Storage implementation.
• backend/app/db/session.py (indirectly) — main.py reads settings.database_url and passes it to init_engine.

In every case the consumer treats Settings as a plain typed object. None of them know or care where the values came from. That decoupling is what makes “swap local for cloud” a config change — STORAGE_BACKEND=r2 in .env (plus the R2 credentials) is the only edit needed to point the same code at Cloudflare R2 instead of LocalStorage. The factory in backend/app/clients/__init__.py reads the new storage_backend value through Settings and returns a different implementation; no caller has to change.

That’s the payoff of treating config as data: the Python code stays the same; the deployment changes.
